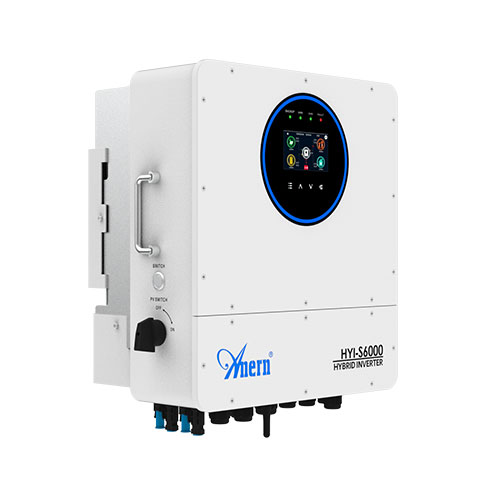

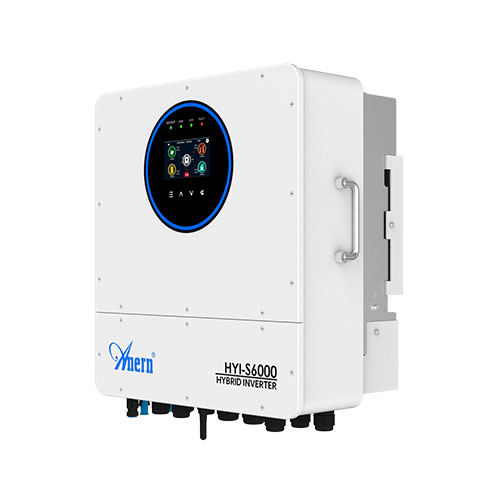

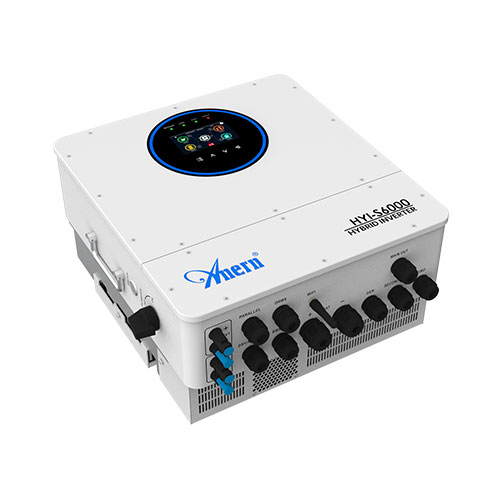

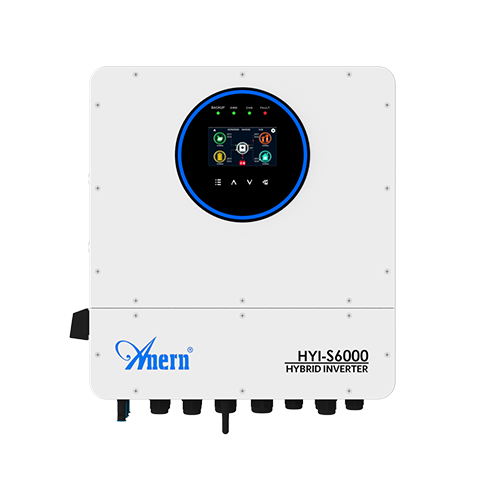

IP65 Dual-Output Hybrid Solar Inverter

The new IP65-rated hybrid solar inverter ships directly from Anern's factory in China. It’s not only designed for flexible energy storage solutions, but also features smart load management, seamless on-grid/off-grid operation, and reliable backup power. This makes it an ideal choice for wholesale distributors seeking high-quality, durable, and efficient solar products.

IP65 Dual-Output Hybrid Solar Inverter Parameter



Model AN-PVI-6000 AN-PVI-10000
Rated Output Power 6000W 10000W
Maximum PV Input Power 9000W 16200W
MPPT Voltage Range
50-450Vdc
Number of MPPT Trackers /Maximum Input Current
2/18A
2/18A+36A
Maximum AC Input Current
40A
60A
Nominal Output Voltage
220/230/240VAC
Acceptable Input Voltage Range
90-280VAC
Phase
1-phase in /1-phase out
Frequency Range
50 Hz/60 Hz(Auto sensing)
Dimension: D x W x H (mm) 500x483x235.5mm 600x483x260mm



Advantages of IP65 Dual-Output Hybrid Solar Inverter

IP65 Smart Dual-Output Hybrid Solar Inverter-1

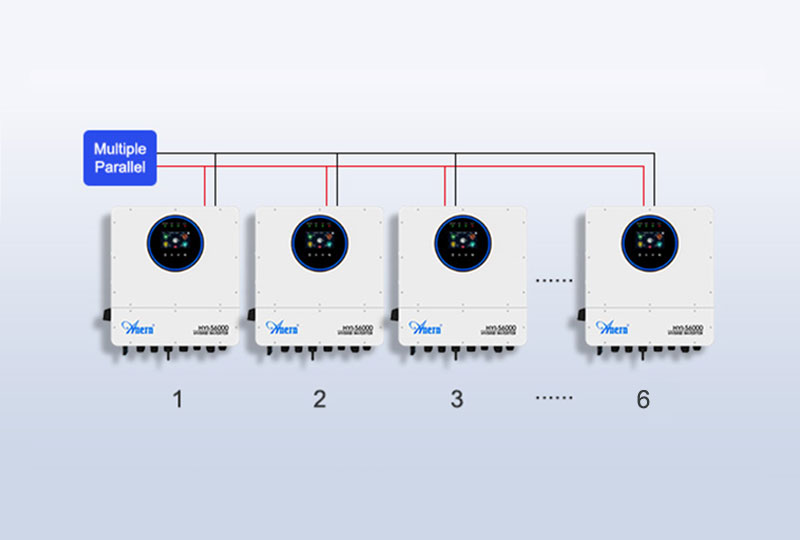

Configured Parallel Scalability

Parallel Scalability(Up to 6 Units): Allows system expansion up to six parallel units, providing significant flexibility for large residential and commercial projects.

IP65 Smart Dual-Output Hybrid Solar Inverter-2

User-Centric Design& Seamless Battery Integration

The inverter's built-in current transformers simplify installation and make accurate system monitoring easier. Built-in BMS, communication(RS485) and user-adjustable charging parameters ensure compatibility and optimal performance with various battery types, forming a complete Energy Storage Solution.

IP65 Smart Dual-Output Hybrid Solar Inverter-3

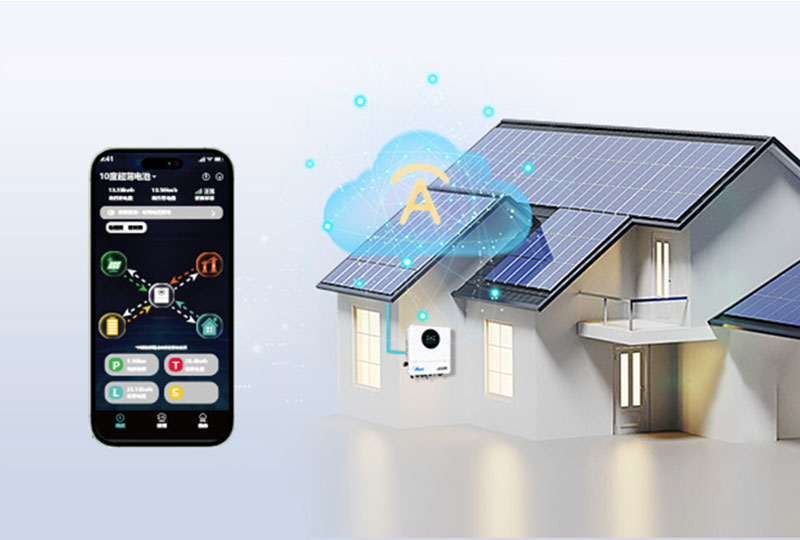

Intelligent Power Flow Control

It features a user-friendly color touchscreen LCD display with a wide range of functions. Features user-selectable priority settings (PV, Battery, or On-Grid) for self-consumption optimization and efficient energy dispatch. The user-friendly color touch LCD offers richer functionality.



IP65 Smart Dual-Output Hybrid Solar Inverter-4

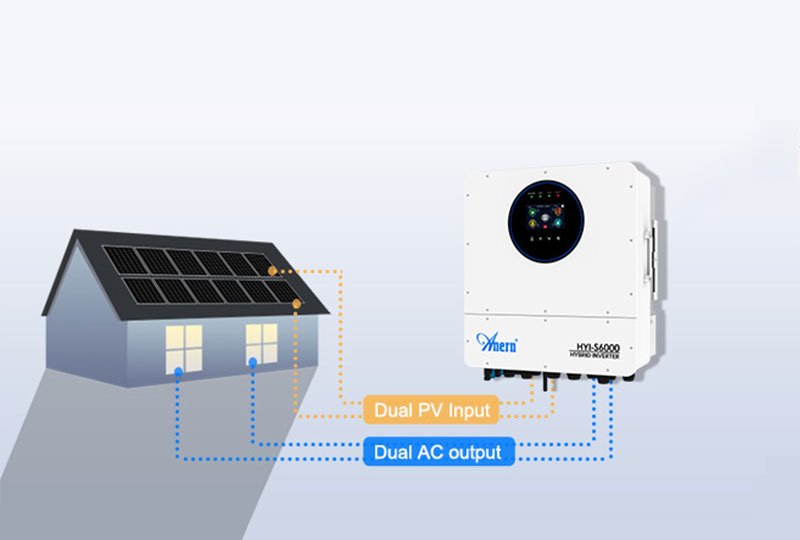

Dual-Output Capability

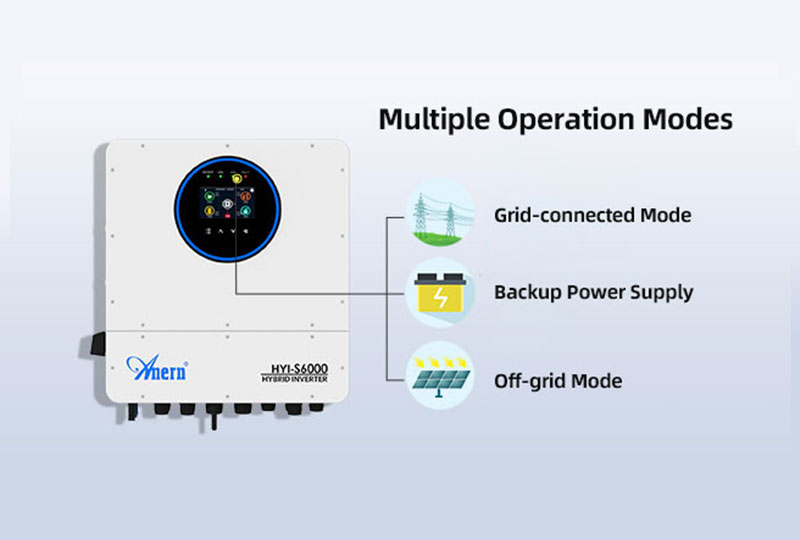

Provides two independent AC outputs with automatic transfer switch, offering uninterrupted, Reliable Power Backup (Support Grid-tie/Off-grid/Backup modes) essential for critical loads.

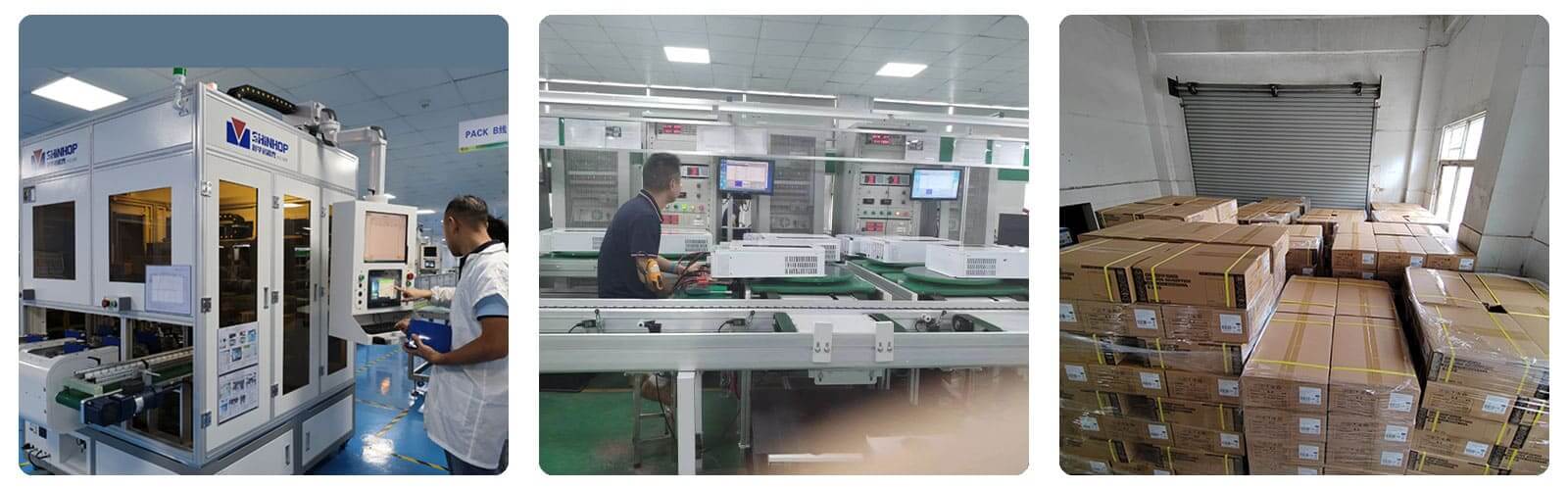

IP65 Dual-Output Hybrid Solar Inverter Factory



Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.
