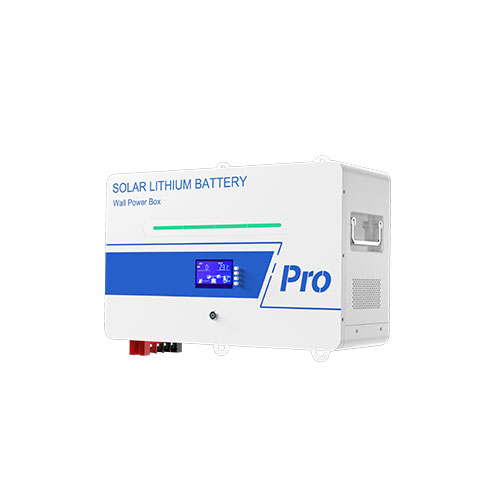

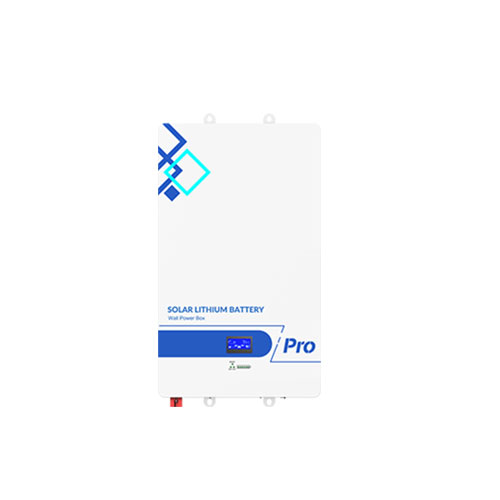

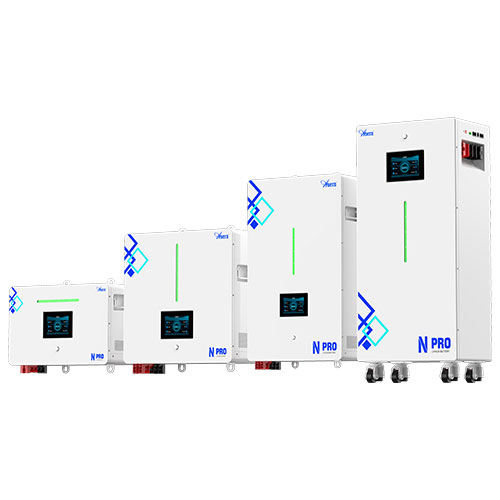

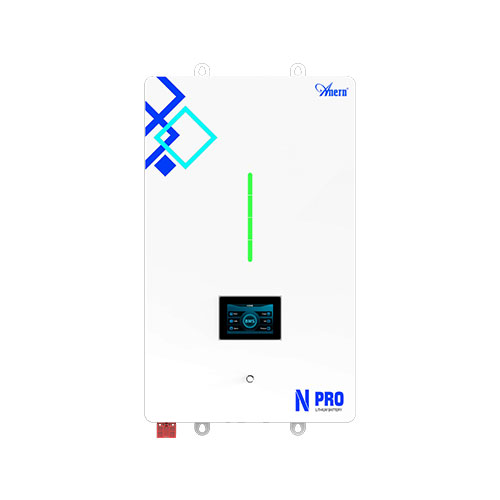

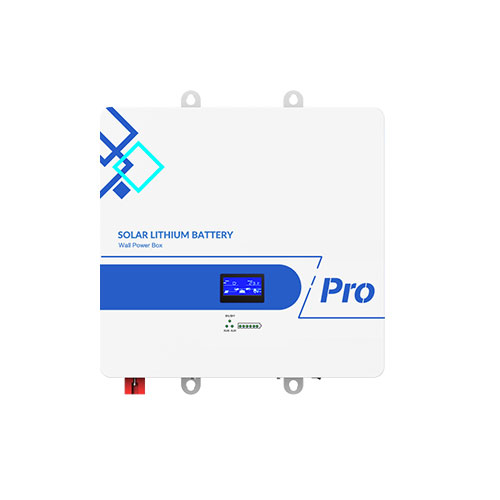

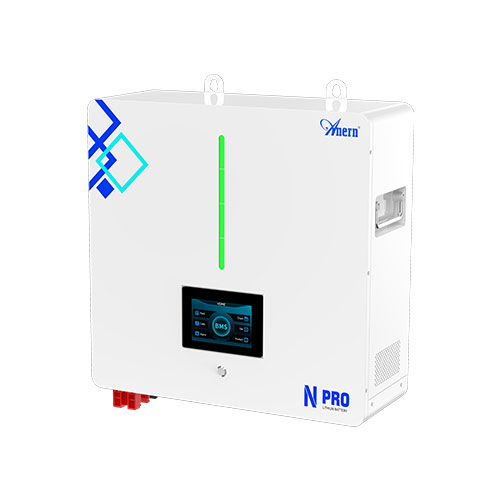

25.6V 51.2V LiFePO4 Lithium Solar Battery

As part of the solar power system, solar lithium batteries play an important role in energy storage, emergency backup and environmental protection.

Anern solar lithium battery modular design, small size, light weight; LCD display that shows various parameters of battery operation and LED indicator that switches colors according to the battery operation status for real-time monitoring of machine operation; support multiple parallel machines, automatic address acquisition without manual operation; using new A-grade lithium battery, long service life over 8 years; BMS battery management system, with 200A continuous overcurrent capacity, mainly used in household solar energy solutions.

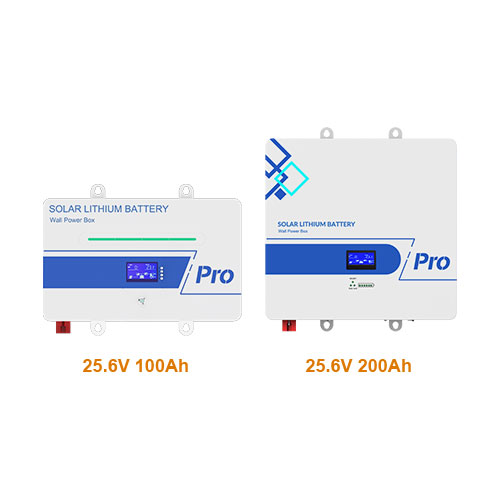

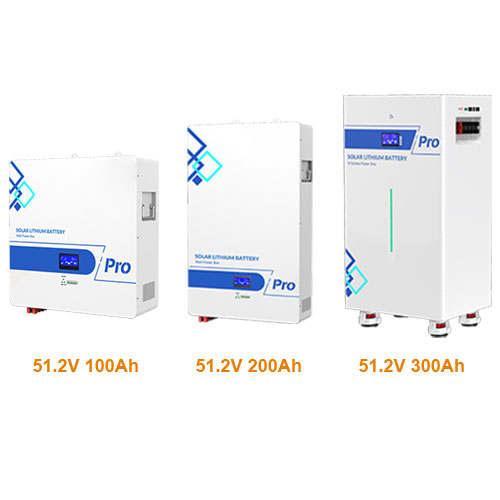

25.6V 51.2V LiFePO4 Lithium Solar Battery Parameter

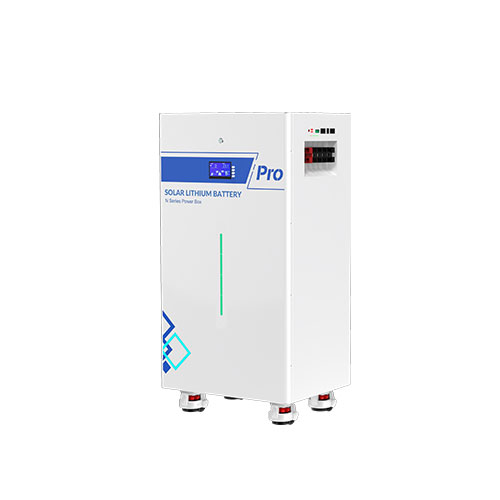

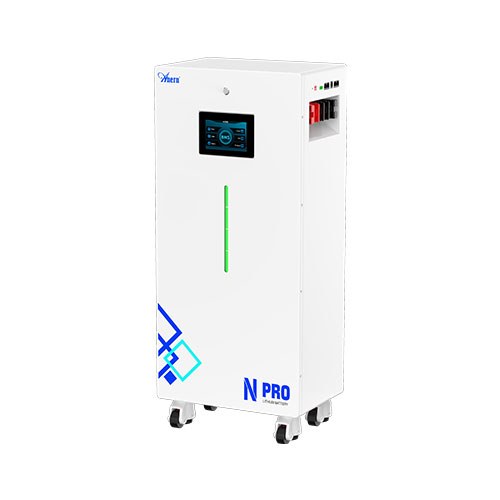

Model LPB-N-24100 LPB-N-24200 LPB-N-48100 LPB-N-48200 LPB-N-24300(Floor type) LPB-N-48300(Floor type)
Capacity 100AH 200AH 100AH 200AH 300AH 300AH
Voltage 25.6V 25.6V 51.2V 51.2V 25.6V 51.2V
Voltage Working Range(V) 22.4-29.2V 22.4-29.2V 44.8-58.4V 44.8-58.4V 22.4-29.2V 44.8-58.4V
Energy storage(Kwh) 2.56Kwh 5.12Kwh 5.12Kwh 10.24Kwh 7.68Kwh 15.36Kwh
Max Charge Current 100A 200A 100A 200A 200A 200A
Max Discharge Current 100A 200A 100A 200A 200A 200A
Size(cm) 520*370*210mm 485*475*180mm 485*475*180mm 796*485*180mm 500*390*260mm 786*390*260mm
IP Grade IP54





Advantages of 25.6V 51.2V LiFePO4 Lithium Solar Battery

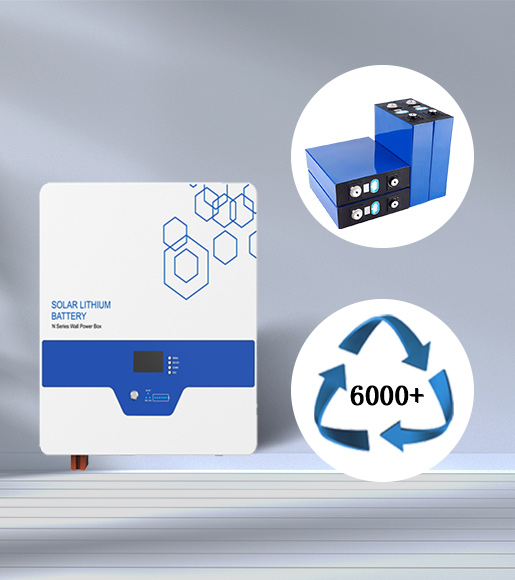

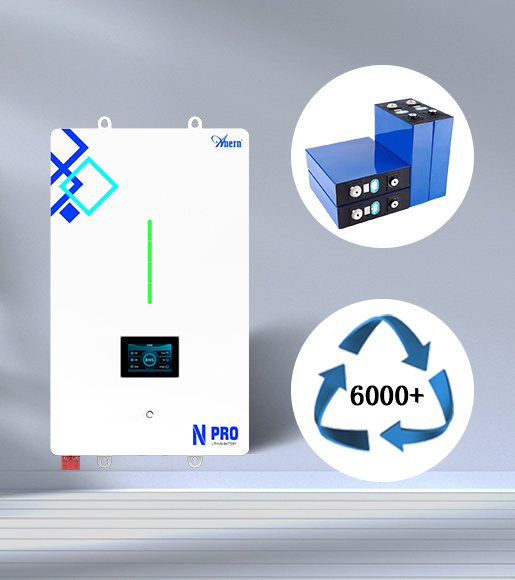

  • New lithium battery
    New lithium battery
    Adopt international brand high quality lithium iron phosphate battery, Suitable for long term charging and discharging cycles, with more than 6000 cycles and a service life of more than 8 years.

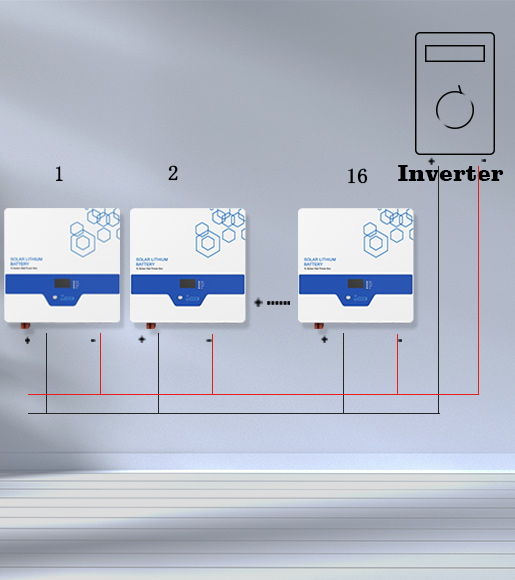

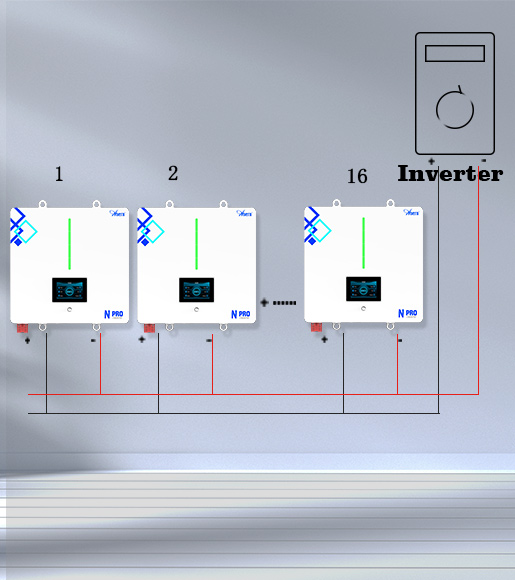

  • Supports 16 batteries in parallel
    Supports 16 batteries in parallel
    Adopting multi-level energy management, supporting multiple parallel connection of batteries to meet the capacity demand. Batteries can automatically obtain the address, easy to install and maintain.
  • Smart BMS system
    Smart BMS system
    Adopting international brand devices, automated management and maintenance of each battery unit, real-time monitoring of battery parameters, high reliability.




Application Of 25.6V 51.2V Lifepo4 Lithium Solar Battery

Application Of 25.6V 51.2V LiFePO4 Lithium Solar Battery



Anern Solar Energy Storage Battery is widely used in various fields with its excellent performance and high energy density. As an ideal energy storage device, lithium batteries can help solar storage systems efficiently store and release energy, providing reliable support for energy storage systems. When applied in the photovoltaic sector, Anern Lifepo4 Lithium Battery can effectively improve the operating efficiency of solar power systems and achieve a balance between supply and demand.

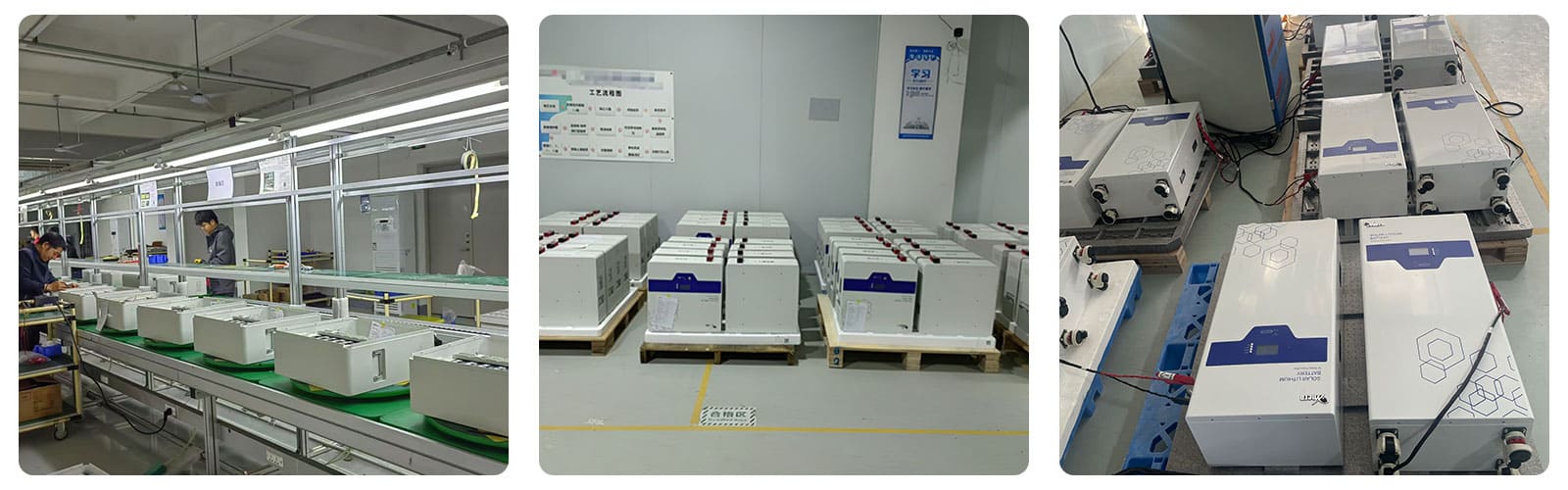

25.6V 51.2V LiFePO4 Lithium Solar Battery Factory



Anern lithium battery manufacturing factory focuses on product quality control and production efficiency. Through a rigorous quality management system and advanced automated production lines. It ensure that the lithium batteries produced have stable performance and reliable quality. At the same time, Anern lithium battery factory also pays attention to environmental protection and safe production, taking various measures to minimize environmental impact and ensure employee safety.

25.6V 51.2V Lifepo4 Lithium Solar Battery Factory
