Hybrid Solar Inverter EVO Series

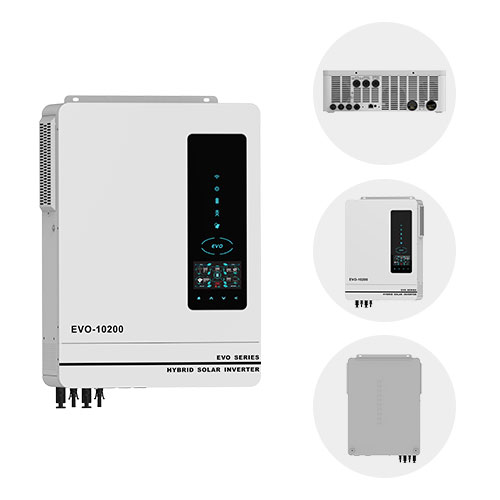

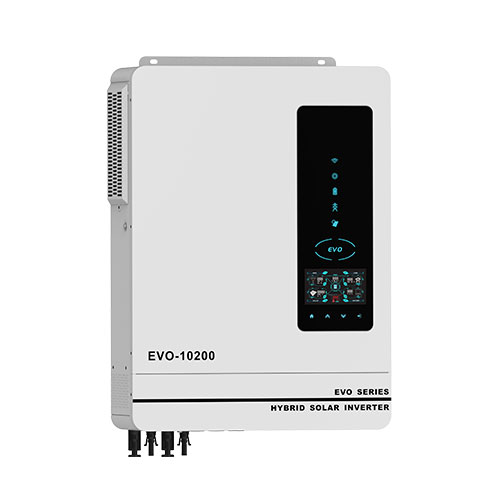

7.2KW 8.2KW 10.2KW Hybrid Solar Inverter

AN-SCI-EVO 7200&8200&10200 series hybrid solar inverters It has dual PV inputs and dual AC outputs function to ensure the stability of the load. WIFI Communication, Remote monitoring of the operating status of the inverter through the terminal device ensures the good operation of the whole system. It also adopts a newly developed LCD display with Touch button function, which is more convenient to use and has a more premium look.  With maximum power up to 10200W, equipped with advanced electronic components and control technology, it can realize efficient power conversion and stable power output to meet higher power demand, which is the perfect solution for off-grid standby power supply for families and small businesses.

7.2KW~10.2KW Hybrid Solar Inverter Parameter



Model SCI-EVO-7200 SCI-EVO-8200 SCI-EVO-10200
Rated Power 7200W 8200W 10200W
Maximum PV Input Power 7500W 8200W 10800W
Dimension: D x W x H (mm) 500*390*130mm 500*390*130mm 530*390*130mm
Net Weight (kgs) 13.1kg 13.1kg 14.5kg
Grid-Tied Operation

Number of MPPT Trackers/Maximum Input Current

1/27A 2/18A
Output Voltage Range 195.5-253VAC
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90-450VDC
Off-Grid Operation
Surge Power 14400W 16400W 20400W
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC / 170-280VAC
Nominal Operating Frequency 50/60Hz



Advantages of 7.2KW~10.2KW Hybrid Solar Inverter

  • Dual PV Input & AC output
    Dual PV Input & AC output
    The main output can be connected to rated power loads, and the secondary output can be connected to loads of one-third of the rated power.

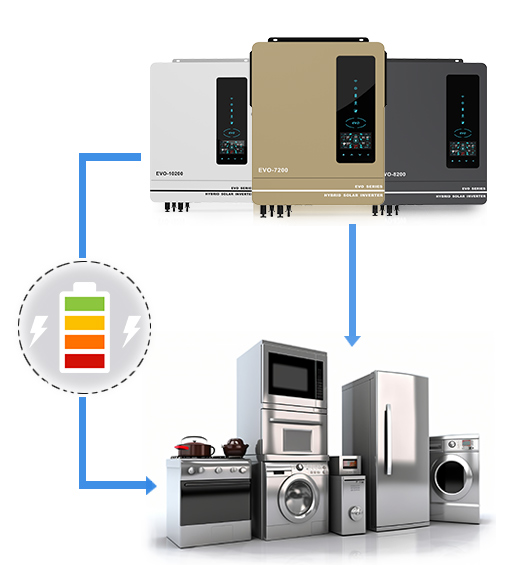

  • Be able to run without battery
    Be able to run without battery
    Be able to run without battery, With function of Lithium battery automatic activation by PV.

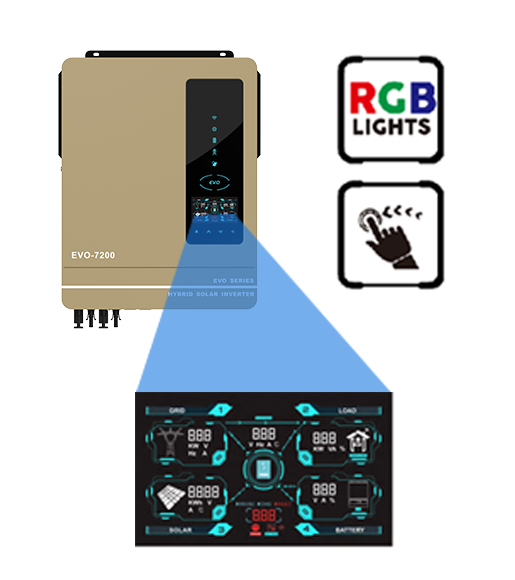

  • RGB Indicator Light
    RGB Indicator Light
    It will switch to display different colors in different working modes to monitor the machine operation at any time.

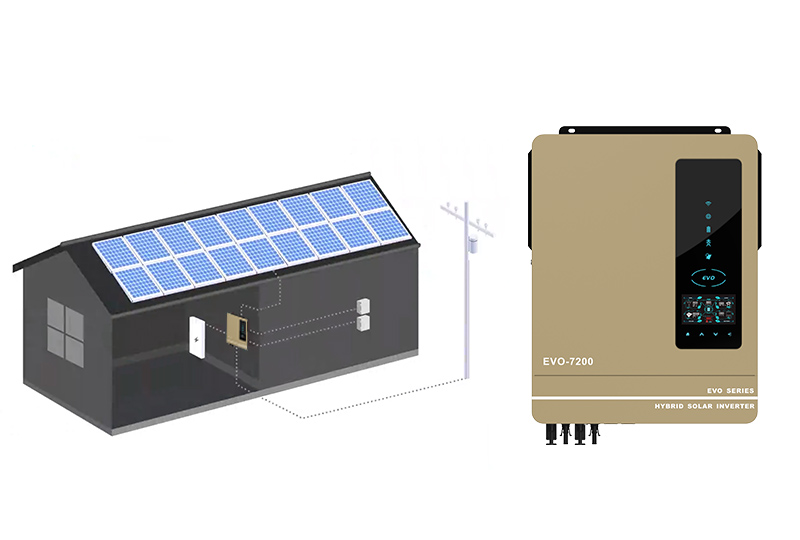

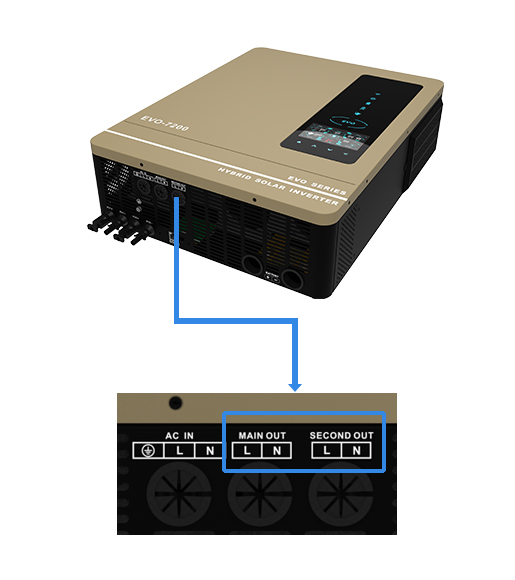

Details of Dual Output Function

Dual PV Input & AC output

Dual PV Input & AC output:



Dual PV Input:Most of the 8-10K inverters on the market use a combination of 2 MPPT controllers, each connected to 4KW PV, 2 ways is 8KW PV. The Anern inverter uses a whole MPPT controller with dual PV inputs to facilitate solar panel wiring and reduce the use of convergence boxes.



Dual AC output:The main and secondary outputs are used normally under regular conditions, but when the two conditions of no solar and utility input or battery voltage below 44V are met, the main circuit is disconnected and only the secondary output is retained, which can effectively ensure the use of important loads connected to the secondary output.

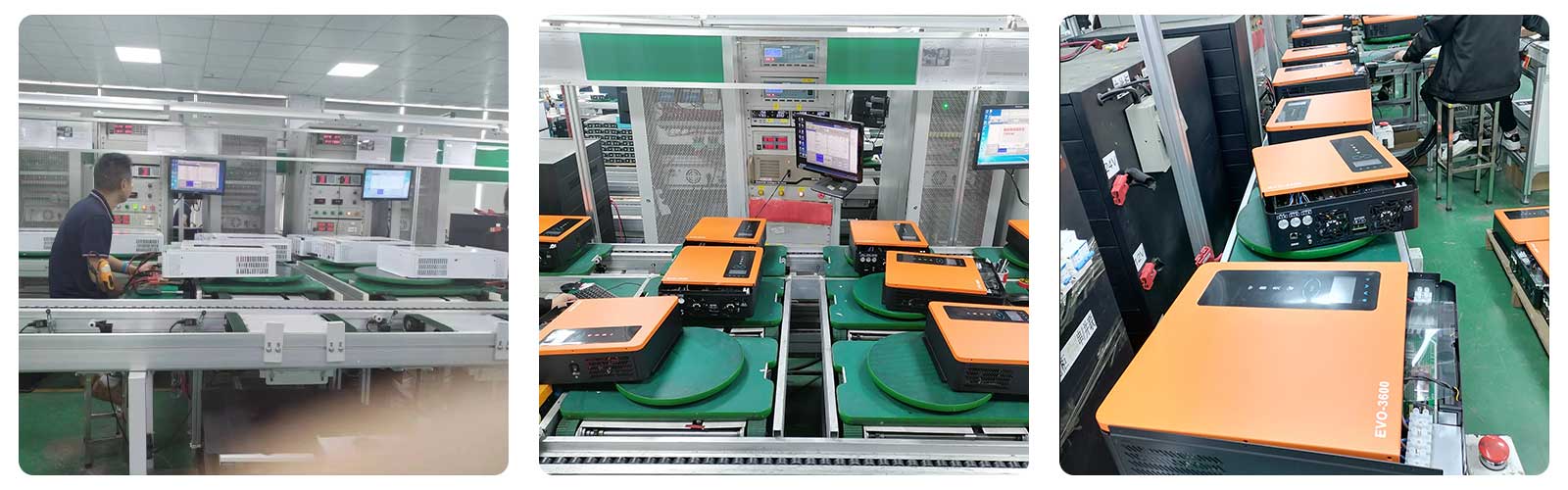

7.2KW~10.2KW Hybrid Solar Inverter Factory



Solar Inverter Factory, where technology and sustainable energy meet. We are committed to building high-performance, reliable and stable solar inverters, the core equipment for converting solar energy into clean electricity. Adopting advanced technology and strict quality control, we endeavor to provide our customers with the best quality energy conversion solutions.

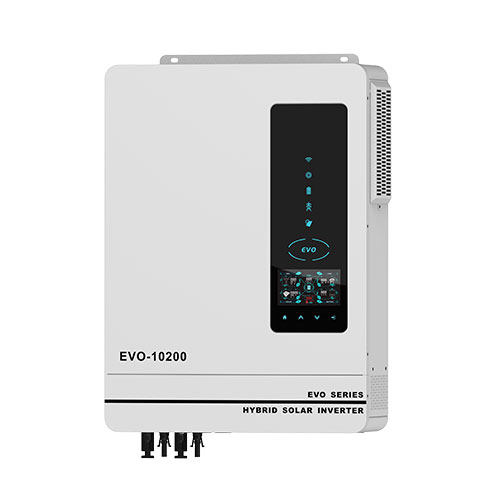

10.2KW Hybrid Solar Inverter



The FAQ Of Renewable Energy Hybrid Solar Inverter



Solar Inverter

What type of inverter is best for solar?

Hybrid Inverter. In general, hybrid inverters can handle both solar panels and batteries. Conventional inverters, such as string inverters and microinverters are only suitable for PV panels. The main benefit of using a hybrid inverter is that there is no need to install a controller.



How do choose a good solar inverter?

When adding solar power to your building or business, choosing the right inverter manufacturer is critical. There are a number of factors to consider when choosing an inverter, and here are five of the most critical: warranty policies, quality control standards, customer service levels, installation support, and competitive pricing.



What size solar inverter do I need for?

Typically, you need to match the power of the solar panels. For example, if you are using a 5000 watt solar panel system, you will need at least a 5000 watt inverter.



Can I order samples?

Bulk orders are supported with samples on request. Please discuss your requirements with a member of our customer service team.
