7.2kW-12kW Split-Phase US-Standard Hybrid Solar Inverter

Our high-performance split-phase hybrid solar inverter is designed to maximize energy independence. This pure sine wave solar inverter is built for versatility. It supports battery-less operation, parallel expansion, and seamlessly manages power from solar panels, batteries, the grid, and even diesel generators.

It is the ideal core component for modern industrial, residential, or commercial energy storage systems. Designed specifically to meet the unique electrical standards of the Americas, this device supports standard split-phase voltage requirements (120V/240V) and integrates seamlessly into local power grids.



7.2kW-12kW Split-Phase US-Standard Hybrid Solar Inverter Parameter



Model AN-FGI-AS7200P AN-FGI-AS1000P AN-FGI-AS12000P
Phase 1-phase in /1-phase out
Maximum PV Input Power 9000W 12000W 12000W
Rated Output Power

Split phase: 7200W

/Single phase: 6000W

Split phase: 1000W

/Single phase: 7200W

Split phase: 12000W

/Single phase: 7200W

MPPT Voltage Range 90-450Vdc

Number of MPPT Trackers

/Maximum Input Current

2/16A 2/22A 2/22A
Rated Output Voltage

120Vac (L1/N, L2/N) / 240Vac(L1/L2)

Rated Iutput Voltage 120Vac(L1/N, L2/N)/240Vac(L1/L2)
Frequency Range
50 Hz/60 Hz(Auto sensing)
Nominal DC Voltage
48Vdc
Maximum Solar Charging Current
150A
220A
220A
Maximum AC Charging Current
120A
150A
160A
Permitted parallel number
1-6
Dimension: D x W x H (mm)  580*359*127mm  620*450*132mm 620*450*132mm
Net Weight (kg) 15.9kg 23.5kg 23.8kg





Advantages of 7.2kW-12kW Split-Phase US-Standard Hybrid Solar Inverter

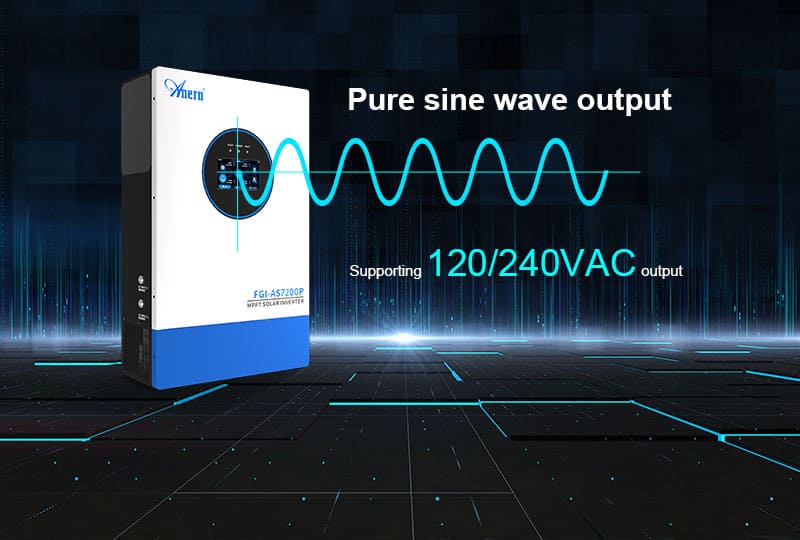

hybrid-inverter-connected-to-diesel-generator-and-lithium-battery

Intelligent Energy Management & CT Zero Export To Grid

It utilizes split-phase technology. Designed specifically for the 120/240VAC residential and commercial power systems common in the Americas, which ensuring perfect compatibility with local power grids and electrical equipment.

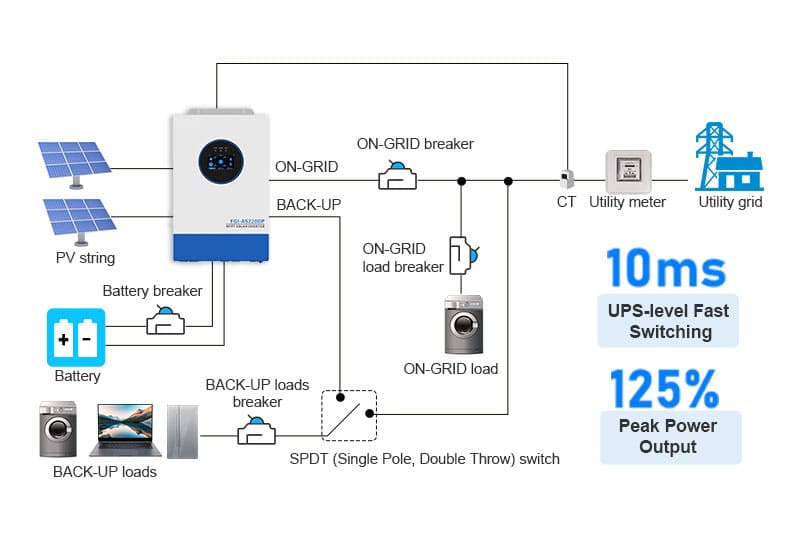

High-Efficiency Power Solution with UPS-Level Switching & Parallel Scalability 7.2kW/10kW/12kW

High-Performance Reliability & UPS-Level Protection

Experience uninterrupted power with UPS-level switching times as low as 10ms. This Pure Sine Wave inverter is built to handle tough environments, capable of withstanding continuous impact loads. For heavy-duty appliances, it delivers a powerful 125% EPS peak output for 5 seconds, ensuring your motors and compressors start smoothly. Whether it's a sudden outage or a high-surge appliance, your electronics are always protected.

7.2kw-split-phase-hybrid-inverter-with-touch-screen

Reliable Power Security&Smart Monitoring

Battery-less Support: The system can run without batteries; PV and the grid work together to power loads directly, reducing initial investment costs.

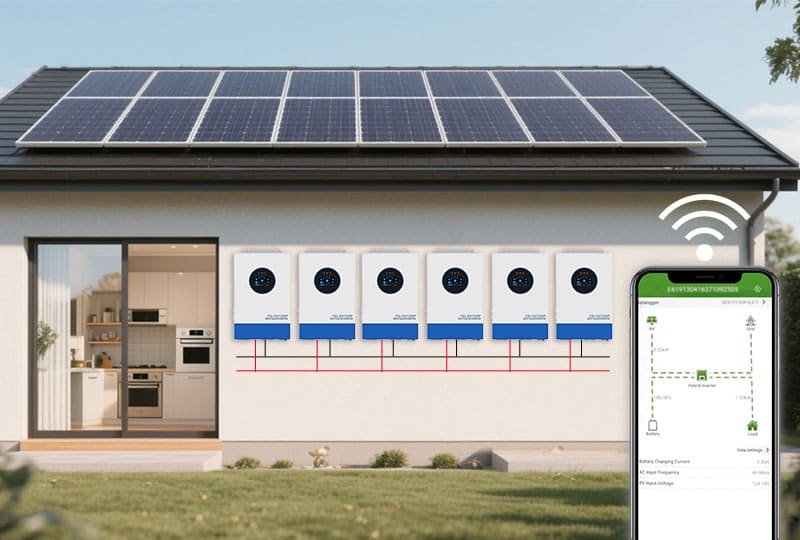

solar-inverter-parallel-connection-diagram-up-to-6pcs

Support Maximum 6Pcs In Parallel

Parallel Expandability: Supports a maximum of 6 units in parallel, allowing your system to grow as your power needs increase.

Diesel Generator Support: Integrated input for diesel generators, providing an extra layer of energy security for off-grid or emergency scenarios.

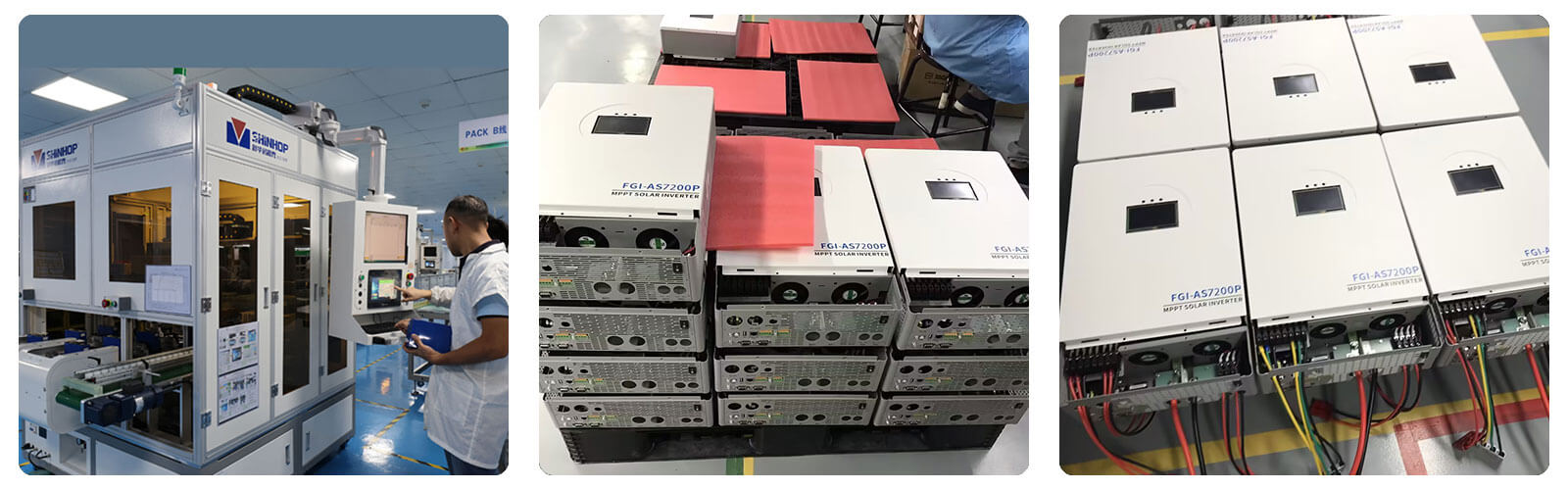

7.2kW-12kW Split-Phase US-Standard Hybrid Solar Inverter Factory



Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.

7.2kW-12kW Split-Phase US-Standard Hybrid Solar Inverter-1
