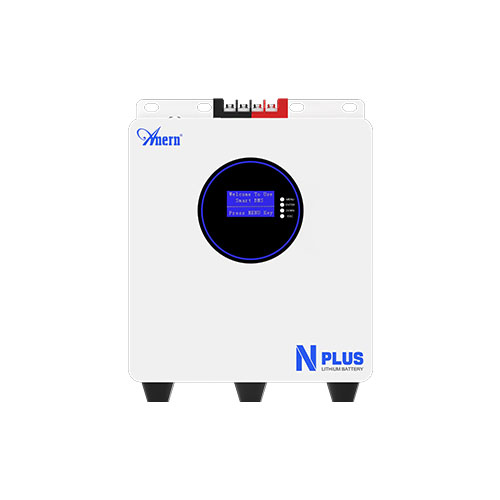

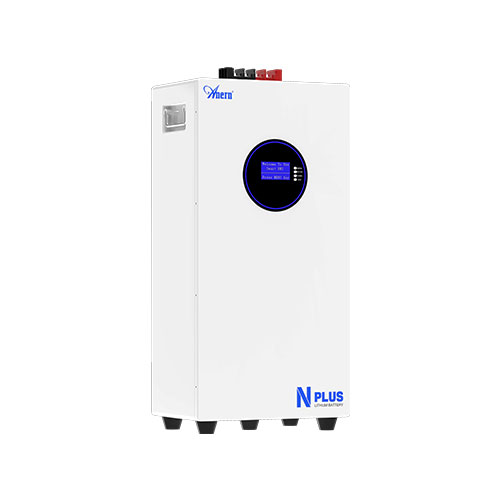

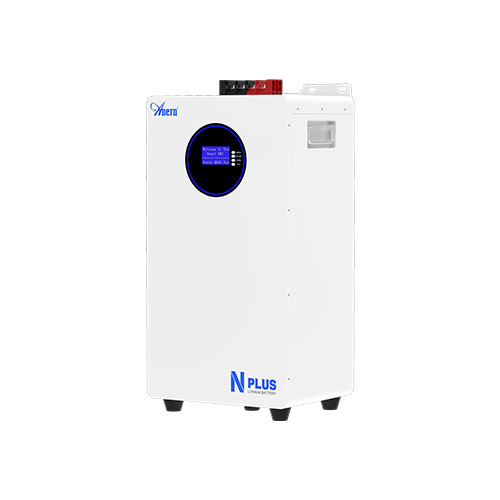

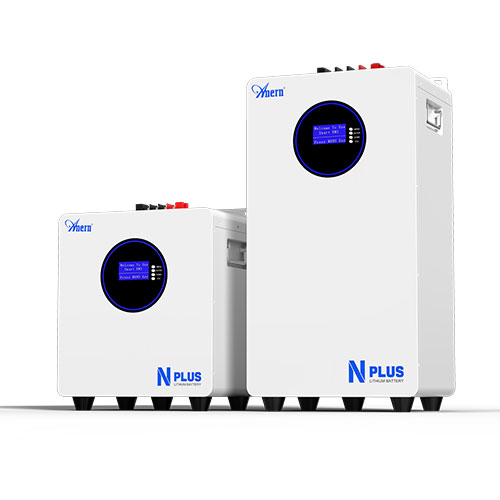

Wall-mounted/Floor-standing Lifepo4 Lithium Solar Battery

This lithium battery is a new series of solar batteries launched by Anern. It’s built for an incredibly long service life of over eight years, ensuring a stable and enduring power supply. This advanced lithium battery is designed to meet the growing demands of solar energy wholesalers and installers worldwide, providing a long-lasting and user-friendly energy storage solution.

Anern's battery is engineered for frequent and prolonged charging and discharging cycles, a crucial feature for any effective solar power system. It integrates a high-performance processor and components from international brands for exceptional reliability and stability.



Wall-mounted/Floor-standing Lifepo4 Lithium Solar Battery Parameter

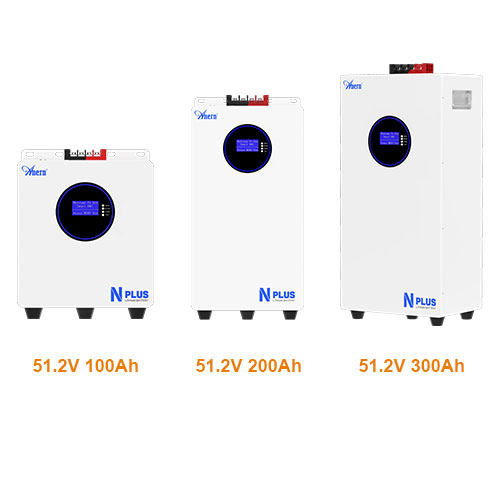

Model LPB-Nplus-24200 LPB-Nplus-48100 LPB-Nplus-48200 LPB-Nplus-48300
Capacity 200AH 100AH 200AH 300AH
Voltage 25.6V 51.2V 51.2V 51.2V
Voltage Working Range(V) 22.4-29.2V 44.8-58.4V 44.8-58.4V 44.8-58.4V
Energy storage(Kwh) 5Kwh 5Kwh 10Kwh 15Kwh
Max Charge Current 200A 100A 200A 200A
Recommended Charge Current(A)
100A 50A 100A 150A
Max Discharge Current 200A 100A 200A 200A
Cycle Life
5000 Cycles 10000 Cycles
Size(cm) 485*475*180mm 485*475*180mm 796*485*180mm 800*380*250mm
IP Grade IP54
Communication
RS232, RS485, CAN
Certifications
 CE, ROHS, UN38.3, MSDS





Advantages of Wall-mounted/Floor-standing Lifepo4 Lithium Solar Battery

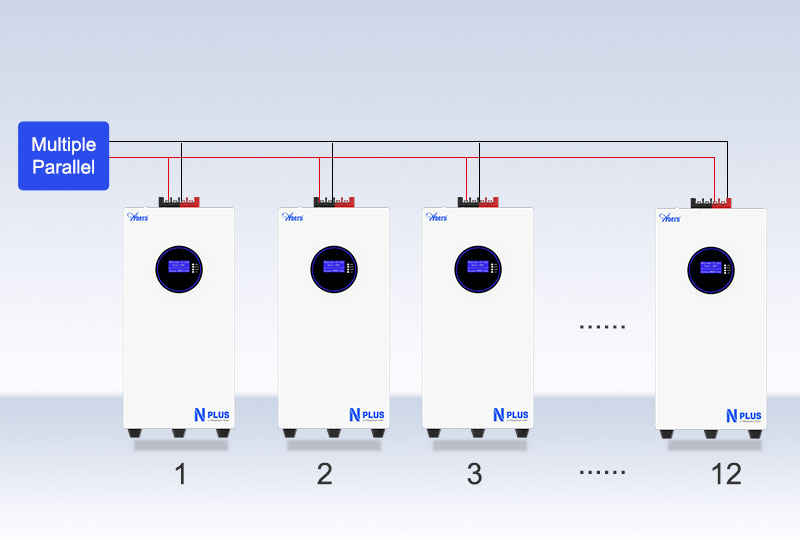

  • Multiple Parallel Machines, Automatic Address Acquisition
    Its one-button power on/off simplifies operation, while multi-machine parallel connections are automatically addressed without manual intervention.

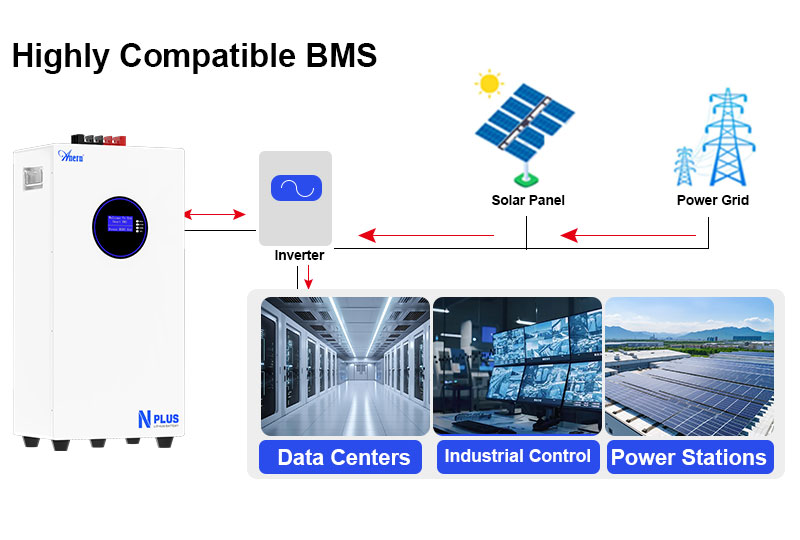

  • Highly Compatible Bms, Seamless Connection With Various Inverters
    With a powerful, highly compatible BMS, it supports high-current charging and discharging and features advanced active balancing for optimal performance. The battery incorporates multi-level energy consumption management to maximize efficiency and includes multiple communication interfaces(RS485, RS232, CAN) for achieving seamless integration with a variety of inverters.

  • Wall-mounted & Floor-mounted Installation For Optional
    The system offers flexible installation options, supporting both wall-mounted and floor-standing setups to fit various spaces. This product meets global safety standards, holding essential certifications like CE, ROHS, UN38.3, and MSDS.




Lifepo4 Lithium Solar Battery Factory



Anern lithium battery manufacturing factory focuses on product quality control and production efficiency. Through a rigorous quality management system and advanced automated production lines. It ensure that the lithium batteries produced have stable performance and reliable quality. At the same time, Anern lithium battery factory also pays attention to environmental protection and safe production, taking various measures to minimize environmental impact and ensure employee safety.

25.6V 51.2V Lifepo4 Lithium Solar Battery Factory



Get In Touch

Contact us for a free quote with specific details

Leave a Message
submit

RELATED PRODUCTS

25.6V 51.2V LiFePO4 Lithium Solar Battery
As part of the solar power system, solar lithium batteries play an important role in energy storage, emergency backup and environmental protection. Anern solar lithium battery modular design, small size, light weight; LCD display that shows various parameters of battery operation and LED indicator that switches colors according to the battery operation status for real-time monitoring of machine operation; support multiple parallel machines, automatic address acquisition without manual operation; using new A-grade lithium battery, long service life over 8 years; BMS battery management system, with 200A continuous overcurrent capacity, mainly used in household solar energy solutions.
Send Inquiry
12V LiFePO4 Lithium Battery
Compared with traditional lead-acid batteries, Anern 12V LiFePO4 lithium battery have higher energy density and longer cycle life. Adopting high-performance processor and international brand devices, the minimum rated capacity is up to 50AH, supporting up to 4 batteries in series, which is widely applicable to home solar system solutions.
Send Inquiry
Rack LiFePO4 Lithium Battery
Rack LiFePO4 Lithium Battery adopted by the high safety performance, lithium battery cathode material for lithiumiron phosphate, high safety, high stability, high cycle life, high specific energy, specific power, low temperature performance is superior, but large current charge and discharge, and many other advantages, at the same time, using BMS battery management system, with the charge, over discharge, short circuit, over-current (load), temperature, flow, total pressure protection, charging under the secondary electricity, balanced and various protective functions, can be connected to the base station power environmental monitoring systems,Intelligent software anti-theft design,Ensure the life of lithium battery and reduce the daily maintenance work.
Send Inquiry
96-1000V High Voltage UPS Lithium Battery
High-voltage UPS lithium batteries are a type of batteries applied to uninterruptible power supply equipment in high-voltage environments, usually operating at voltages between 100V and 1,000V. It consists of multiple battery modules to increase the power and capacity of the whole system, and is characterized by flexible configuration and reliability. It is mainly used to provide backup power to ensure that critical equipment continues to operate in the event of grid failure or power outage, etc.
Send Inquiry
