6kw-12kw Multiple Parallel Connections MPPT Solar Inverter Manufacturer, 6kw-12kw Multiple Parallel Connections MPPT Solar Inverter Factory

Products Details

6KW-12KW Multiple Parallel Connections MPPT Solar Inverter Parameter

Model	AN-FGI-P6500	AN-FGI-P12000
Rated Output Power	6500W	12000W
Maximum PV Input Power	9000W	15000W
MPPT Voltage Range	60-450Vdc
Number of MPPT Trackers /Maximum Input Current	1/27A	2/22.5A
Maximum Solar Charging Current	120A	160A
Nominal Output Voltage	220/230/240VAC
Acceptable Input Voltage Range	90-280 VAC
Phase	1-phase in /1-phase out
Frequency Range	50 Hz/60 Hz(Auto sensing)
Dimension: D x W x H (mm)	440355117	527435138
Net Weight (kgs)	8.4kg	14.5kg

Advantages of 6kw-12kw Multiple Parallel Connections MPPT Solar Inverter

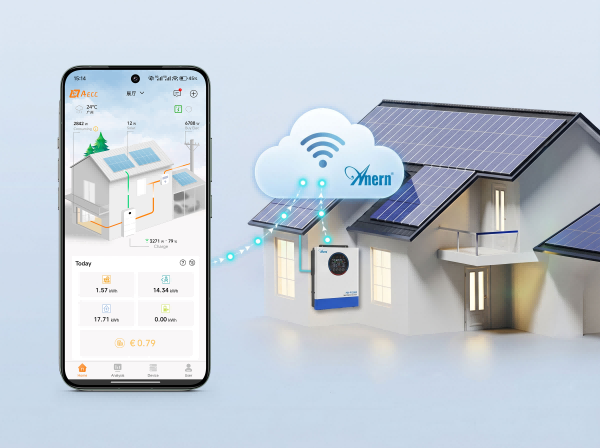

WIFI Remote Monitoring & RGB Lights

The product offers an optional WiFi remote monitoring configuration, allowing users to easily view product status and various power consumption data.

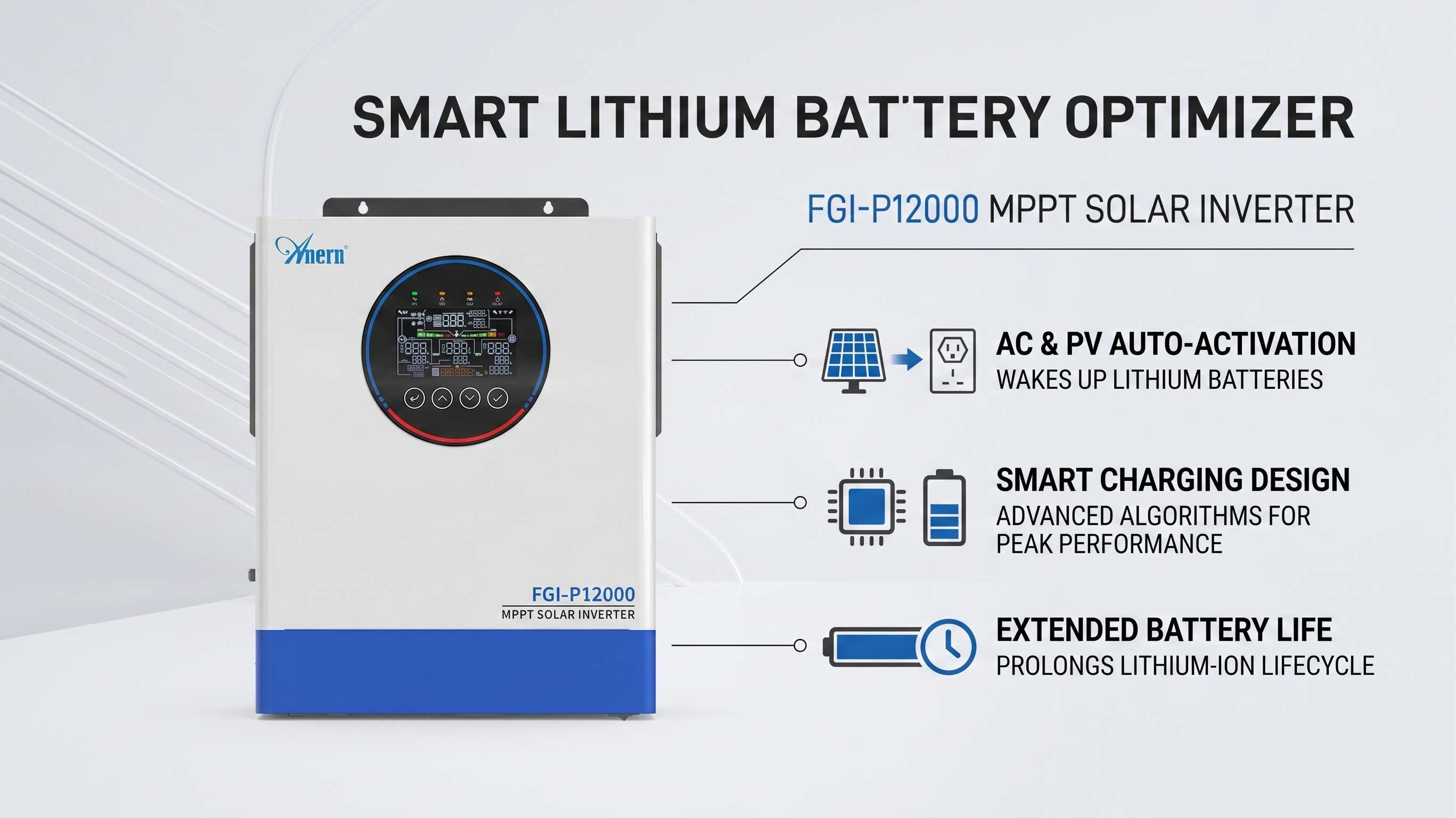

AC & PV Dual Charging Source & Long Battery Life

Smart charging technology employs appropriate charging schemes based on different environments and battery conditions to protect the battery and extend its lifespan.

Stable Current & Adaptable to Various Environments

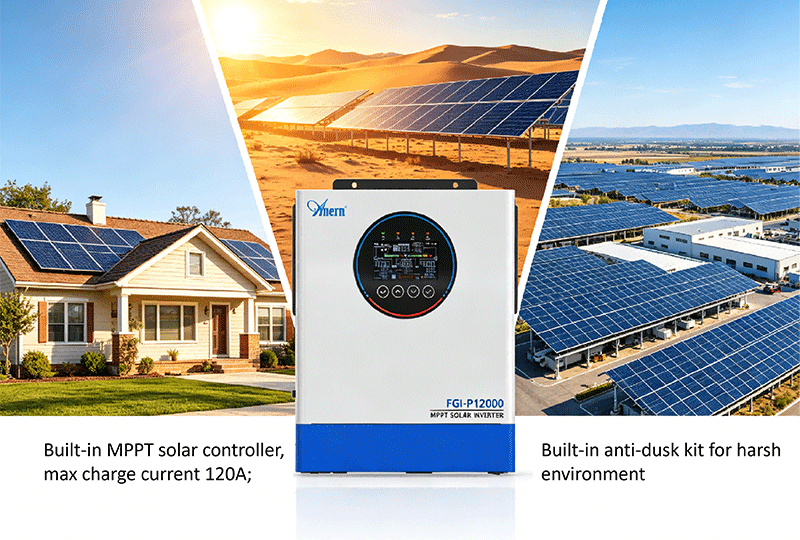

With a built-in MPPT solar controller and a maximum charging current of 120A, the anti-glare kit is sufficient to meet the needs of various environments.

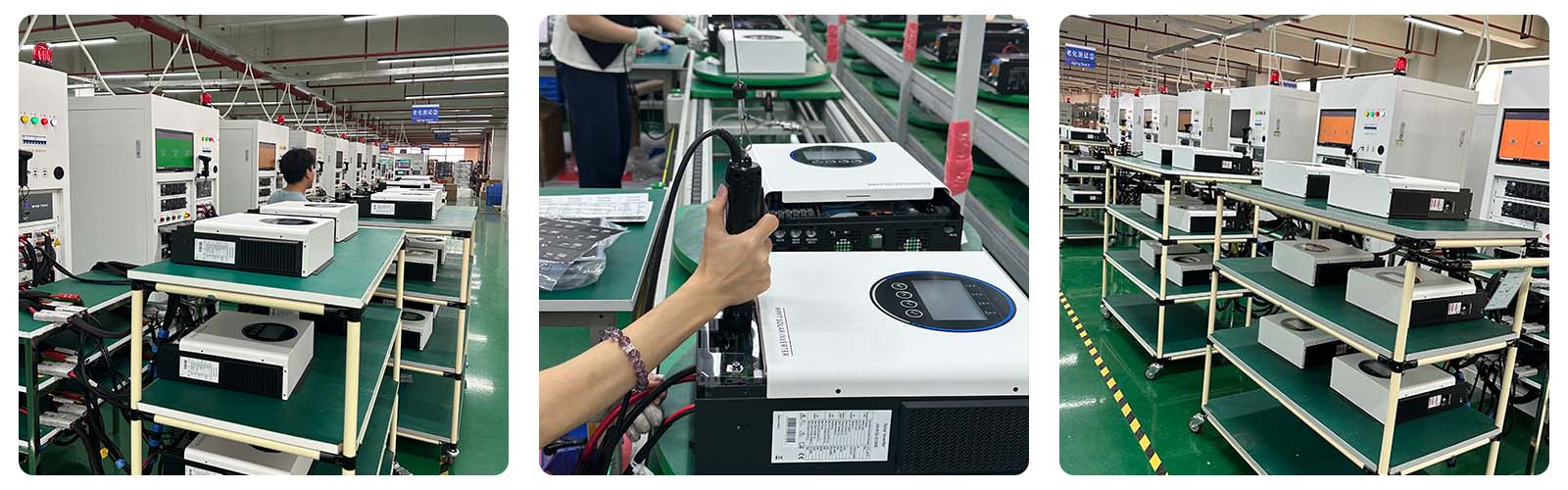

6kw-12kw Multiple Parallel Connections MPPT Solar Inverter Factory

Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.

MPPT Hybrid Solar Inverter Factory
