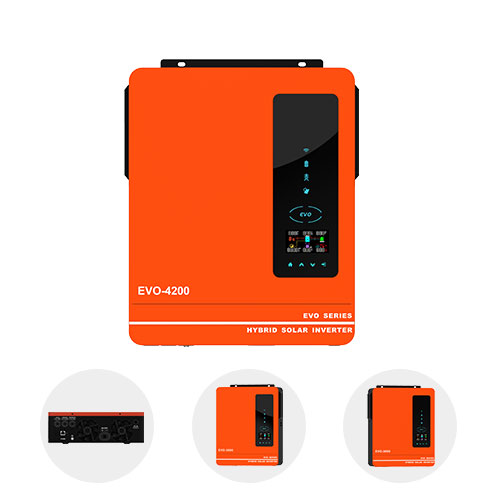

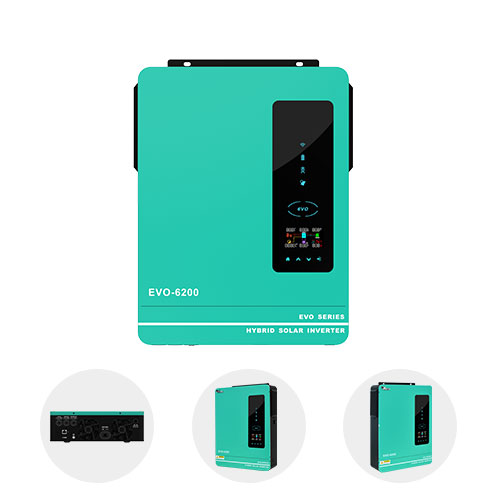

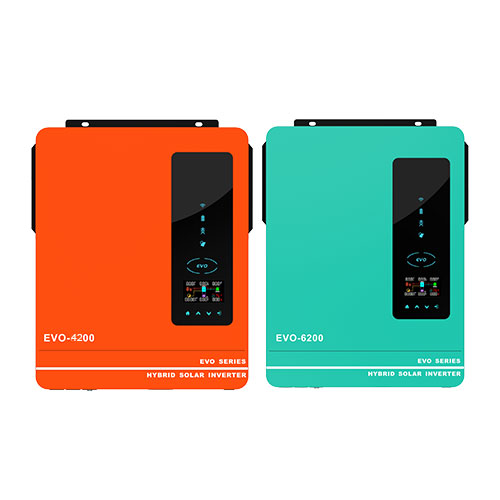

4.2KW 6.2KW Dual AC Output Hybrid Solar Inverter

 AN-SCI-EVO 4200 & 6200 series hybrid solar inverter. Distinguished from other hybrid inverters on the market, with dual AC output and more transportable design. When the battery voltage is low, the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load.

Anern EVO4200&6200 series solar hybrid inverter is one of the most demanded inverters in the market due to its moderate capacity, comprehensive functions and high compatibility. It can fulfill the solar power needs of home and small commercial users and provide them with reliable and efficient solar power conversion solutions.

4.2KW 6.2KW Dual AC Output Hybrid Solar Inverter Parameter



Model SCI-EVO-4200 SCI-EVO-6200
Rated Power 4200W 6200W
Maximum PV Input Power 6200W 6500W
Dimension: D x W x H (mm) 420*350*110mm 450*350*110mm
Net Weight (kgs) 9kgs 10kgs
Grid-Tied Operation
Output Voltage Range 195.5-253VAC
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT DC Voltage Range 60-450VDC
Number of MPPT Trackers/Maximum Input Current 18A 22A
Off-Grid Operation

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC
Maximum AC Input Current 30A 40A
Acceptable AC Input Voltage Range 90-280VAC or 170-280VAC
Nominal Operating Frequency 50/60Hz
Surge Power 8400W 12400W



Advantages of 4.2KW 6.2KW Dual AC Output Hybrid Solar Inverter

  • Start Directly Without Batteries
    Start Directly Without Batteries
    Be able to run without battery, With function of Lithium battery automatic activation by PV

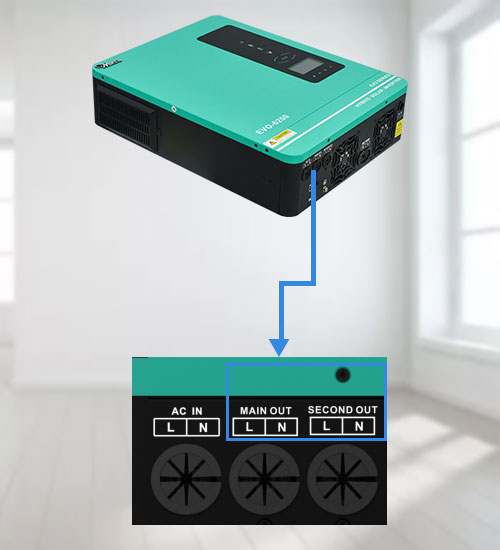

  • Dual AC output
    Dual AC output
    Ensuring the output of the secondary load in case of unstable battery operation can prolong the usage time of the secondary load.

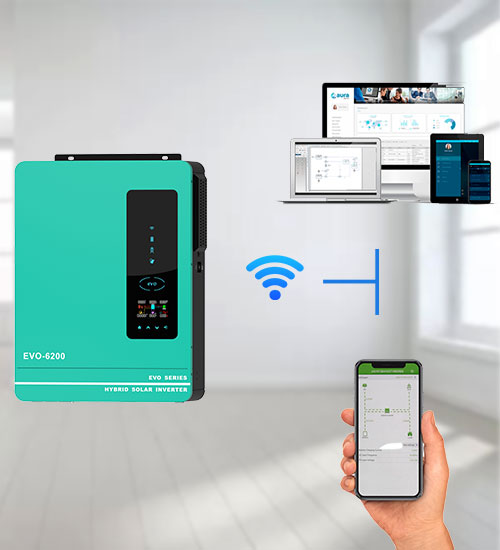

  • WIFI Communication
    WIFI Communication
    Be able to run without battery, With function of Lithium battery automatic activation by PV




Advantages of the inverter’s dual output function
In a power generation system using lithium batteries for storage, when the inverter is under full load or high-power load, due to the characteristics of lithium batteries, the battery voltage tends to drop too quickly, which shall make the battery voltage too low and disconnect the battery while the battery bank still keeps 50% of rated power. With the dual output function, user can connect some important loads to the secondary output. When the battery voltage is low (typically lower than 44V, with a minimum setting of 41V), the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load.

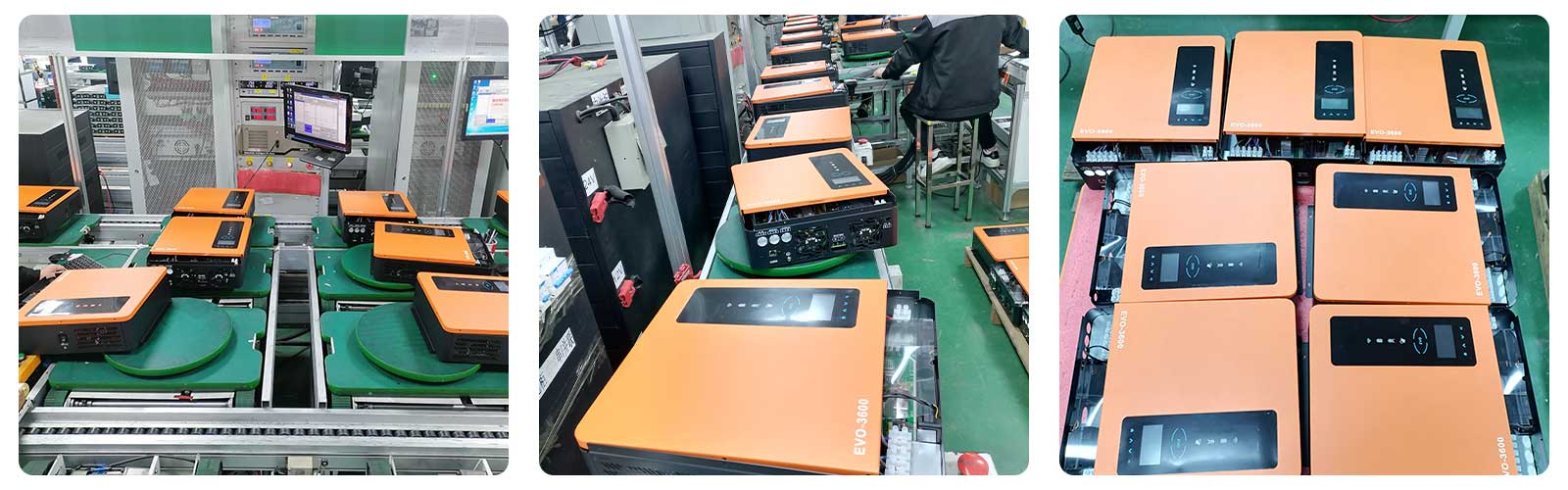

4.2KW 6.2KW Dual AC Output Hybrid Solar Inverter Factory



Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.

Hybrid Solar Inverter Factory

Hybrid Solar Inverter FAQ



Solar Inverter

How many solar panels do this solar inverter is equipped?

The maximum input power of the solar panels of Anern EVO6200 series inverter is 6500w, if you connect 550w Anern half-cut solar panels, you need to connect 10 solar panels.



Which battery is most suitable for Anern hybrid solar inverters?

Choose the solar battery with quality assurance and strong power storage effect, the lithium battery of Anern can be perfectly adapted to the hybrid solar inverter.



How many appliances can be connected to the EVO4200 & 6200 hybrid inverter system?

The solar system composed of EVO4200 & 6200 series inverters can meet the daily electrical operation of an ordinary family.
