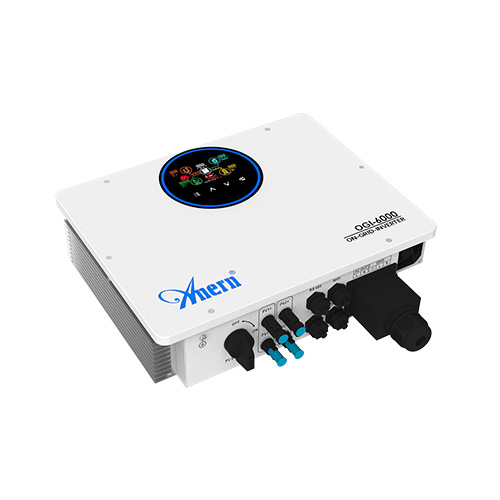

6KW On-Grid Single Phase Hybrid Solar Inverter

This is a single-phase 6KW hybrid solar inverter. Designed for both off-grid reliability and grid interaction, this unit ensures for major appliances and sensitive electronics stay powered under any condition. With an IP65 rating and integrated WiFi, it’s the ultimate "set-and-forget" solution for modern sustainable living.

6KW On-Grid Single Phase Hybrid Solar Inverter Parameter



Model AN-OGI-6000
Rated Output Power 6000W
Maximum PV Input Power 9000W
MPPT Voltage Range
60-450Vdc
Number of MPPT Trackers /Maximum Input Current
2/18A
Nominal Output Voltage
220/230/240VAC
Feed-in Grid Voltage Range
195-253VAC
Phase
1-phase in /1-phase out
Frequency Range
50 Hz/60 Hz(Auto sensing)
Dimension: D x W x H (mm) 480x425x122mm
Net Weight (kgs) 12kg



Advantages of 6KW On-Grid Single Phase Hybrid Solar Inverter

  • Off-Grid Single Phase Hybrid Solar Inverter-1

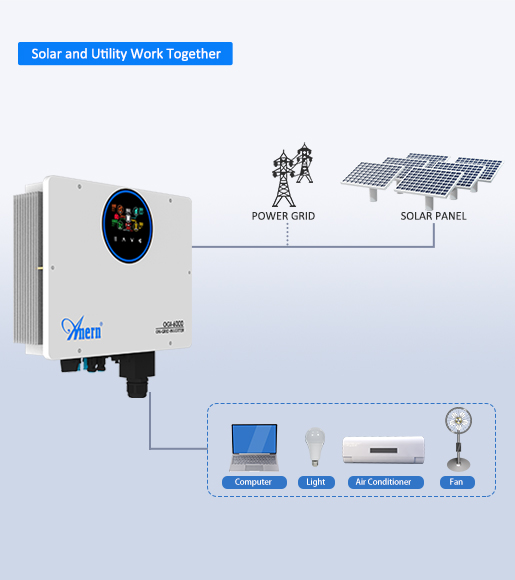

    Solar and Utility Work Together
    Customize voltage ranges and grid interaction directly from the display. Whether Solar or Utility can work for home load Together. The smart LCD settings ensure maximum efficiency and cost savings.
  • Off-Grid Single Phase Hybrid Solar Inverter-2

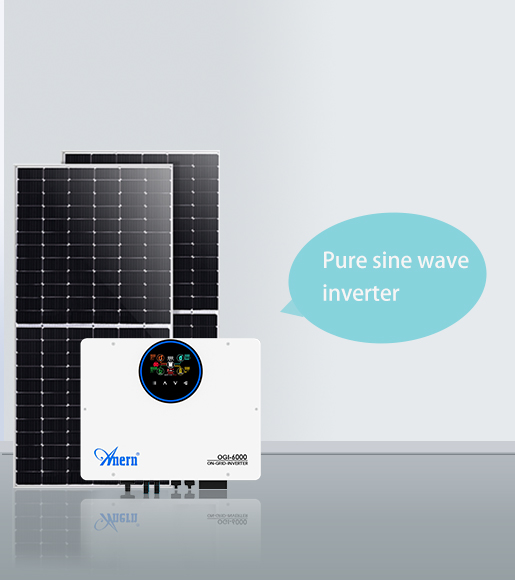

    Pure Sine Wave Inverter
    Pure sine wave power. Equipped with self-healing capabilities, such as auto-restart and cold start, combined with comprehensive electrical safeguards, guarantee 24/7 peace of mind.
  • Off-Grid Single Phase Hybrid Solar Inverter-3

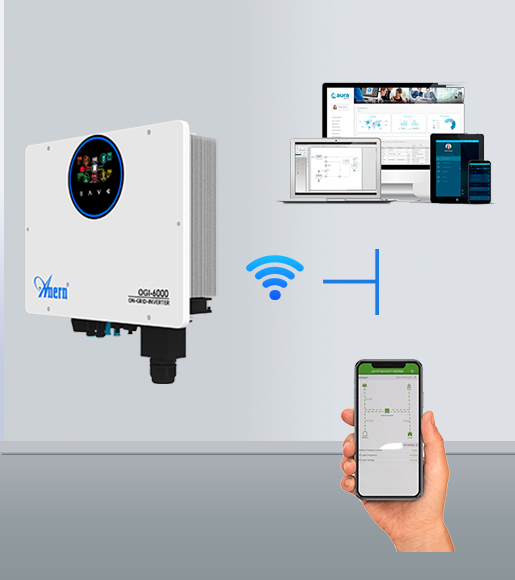

    Wifi Monitoring
    The IP65 rating makes it ideal for diverse installation sites. With built-in WiFi and Current Transformer functions, you can monitor your energy production and consumption in real-time from anywhere, ensuring your system is always performing at its peak.

--

6KW On-Grid Single Phase Hybrid Solar Inverter Factory



Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.
