Wifi-Communicated Hybrid Solar Inverter

The SCI02-PRO series hybrid inverter is a patented product developed by Anern 2022. High-grade appearance design, special RGB light design for displaying operation mode. This design can reflect the operating status and working mode of the inverter through different colors. Running without batteries, increasing system flexibility and reliability and reducing the need and cost of batteries. Anern's SCI02-PRO series hybrid inverters are widely applicable in solar power systems and other energy applications.



Wifi-Communicated Hybrid Solar Inverter Parameter



Model SCI02-Pro-3600 SCI02-Pro-4200 SCI02-Pro-6200
Rated Power 3600W 4200W 6200W

Surge Power

7200VA 8400VA 12400VA
Battery Voltage 24 VDC 24 VDC 48 VDC
Maximum PV Array Power/ Charging Current 6200 W/120A 6200 W/140A 6500 W/120A
Selectable Voltage Range  170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Grid-Tied Operation
Feed-in Grid Voltage Range 195-253VAC
Communication interface WIFI
Net Weight (kgs) 10kgs 10.5kgs 11kgs
Dimension: D x W x H (mm) 100*300*444mm


 Advantages Of Wifi-Communicated Hybrid Solar Inverter
  • Anern Patent Design
    Anern Patent Design

    Stable, efficient and maintenance-free product design concept.

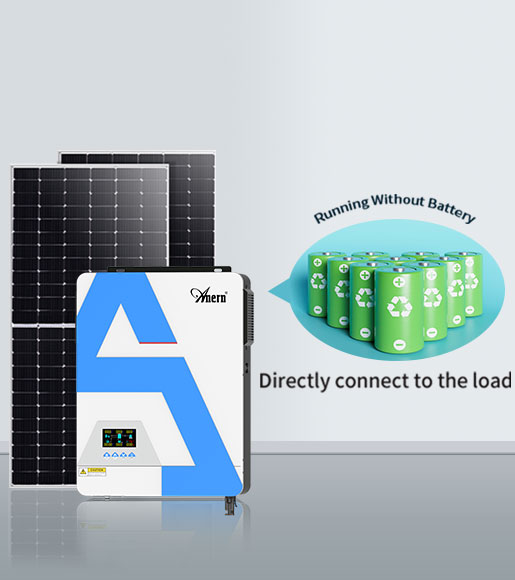

  • Run Without Battery
    Run Without Battery
    Be able to run without battery, With function of Lithium battery automatic activation by PV.

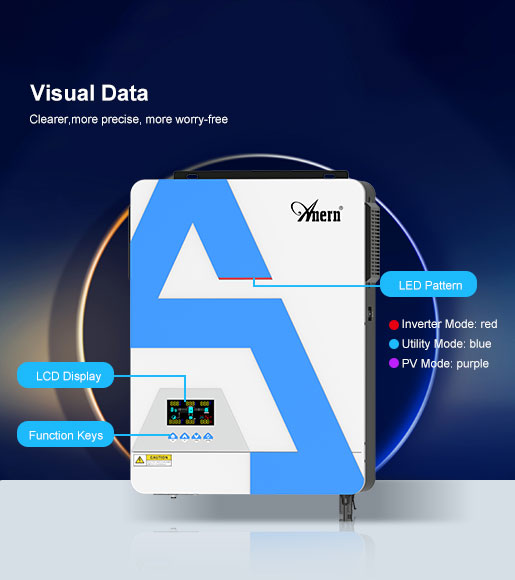

  • LED Pattern
    LED Pattern
    It will switch to display different colors in different working modes to monitor the machine operation at any time.









Work Principle
Hybrid solar inverter is an important power equipment, which can convert direct current into alternating current. It works by receiving the DC input module, and then converting it into high-frequency AC power through the inverter module, and monitoring the inverter module through the control module. At the same time, it can flexibly switch according to actual needs to achieve optimal energy efficiency and performance.







Wifi-Communicated Hybrid Solar Inverter Factory



Anern factory is equipped with advanced production equipment and skilled technical teams, focusing on technological innovation and product optimization. Anern continuously develops new hybrid solar inverter technologies to meet the energy conversion and control needs of our customers. Anern factory prioritizes quality as core value and customer satisfaction as goal, striving to provide high-quality products that meet the highest standards.



Wifi-Communicated Hybrid Solar Inverter Factory
