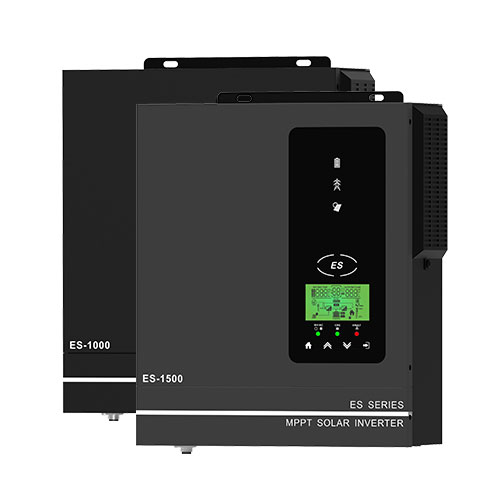

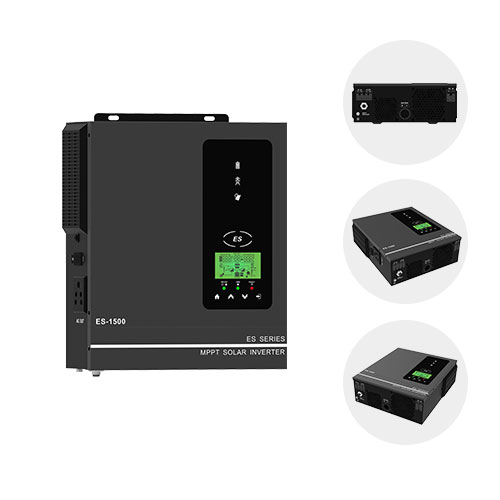

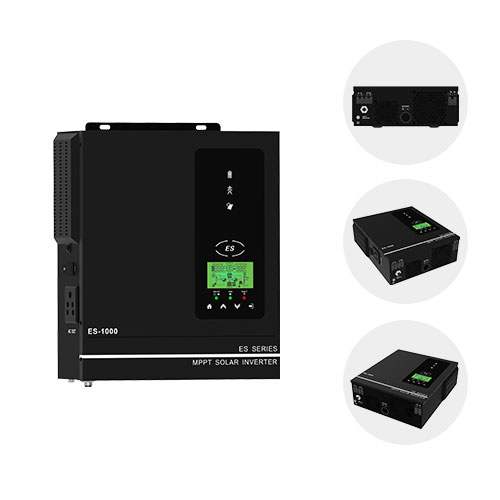

1KW 1.5KW MPPT Hybrid Solar Inverter

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.



1KW 1.5KW MPPT Hybrid Solar Inverter Parameter



Model SCI-ES-1000    SCI-ES-1500
RATED POWER 1000W 1500W
AC INPUT
AC Input Voltage  230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2000VA 3000VA
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
Overcharge Protection 16VDC 33VDC
Maximum AC Charge Current  40A
SOLAR CHARGER
Maximum PV Array Power 550W 1080W
MPPT Range @ Operating Voltage 20-150VDC 30-150VDC
Maximum Solar Charge Current 40A
PHYSICAL
Dimension, D x W x H (mm) 286*240*91
Net Weight (kg) 3 3.5







Key Features

Key Features:



1、Pure Sine Wave Solar Inverter;

2、Output Power Factor 1.0;

3、Bulit-in MPPT solar controller, max charge current 40A;

4、 Max 550W & 1080W solar input power respectively;

5、PV input voltage range 20-150VDC(for 1000W), 30-150VDC(for 1500W);

6、Built-in anti-dusk kit for harsh environment;

7、Smart battery charge design to maximize battery lifespan;

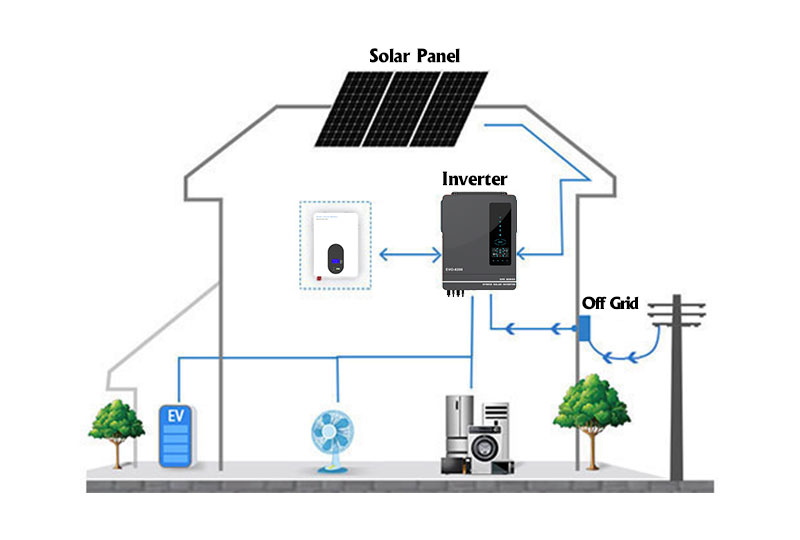

 Function Of 1KW 1.5KW MPPT Hybrid Solar Inverter



Hybrid inverters are advanced devices used for converting and controlling frequency that excel in converting direct current (DC) power into alternating current (AC) power while closely monitoring and regulating their operation, and have the characteristics of high efficiency, stability and reliability, and are widely used in solar power generation, energy storage and other fields.

Function Of 1KW 1.5KW MPPT Hybrid Solar Inverter

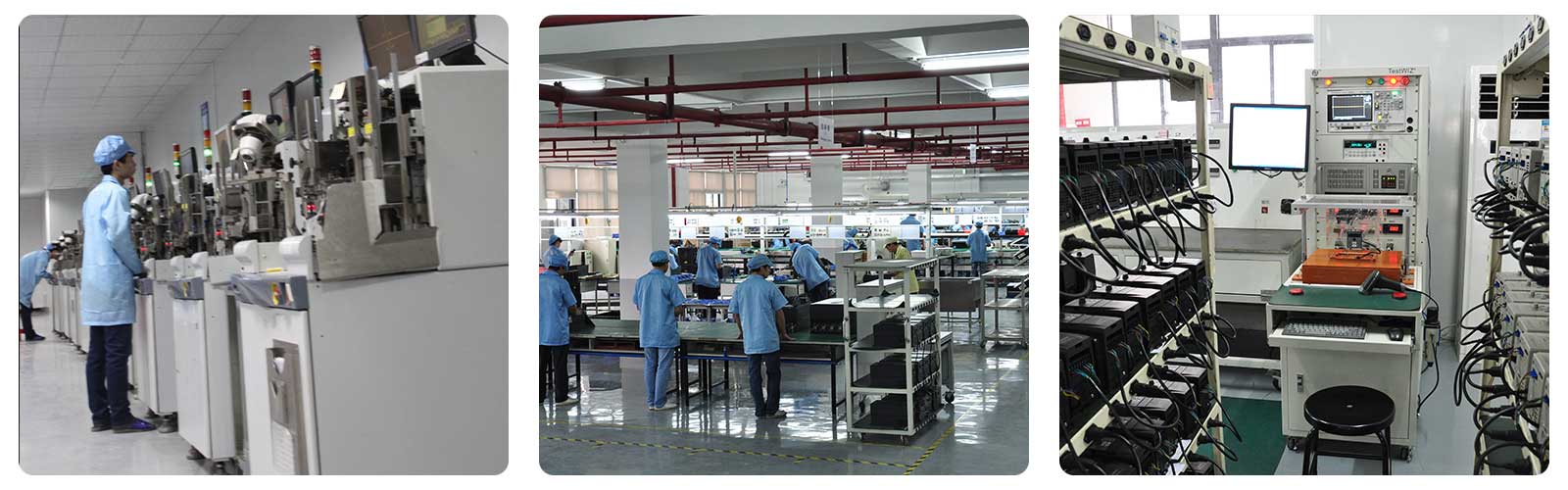

1KW 1.5KW MPPT Hybrid Solar Inverter Factory



Anern all in one inverter factory is a leading manufacturer specializing in the production of high-quality inverters. With state-of-the-art manufacturing facilities and a team of skilled professionals, we are dedicated to delivering reliable and efficient inverters for various applications. Anern factory focuses on product quality and performance, and ensures that every product meets high standards through a strict quality control process.



1KW 1.5KW MPPT Hybrid Solar Inverter Factory
