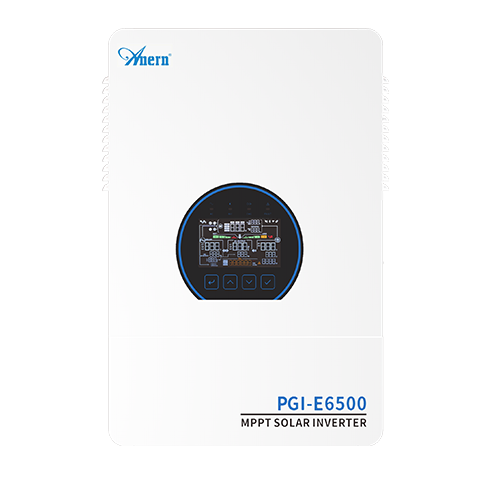

5KW-12KW IP54 Hybrid Solar Inverter

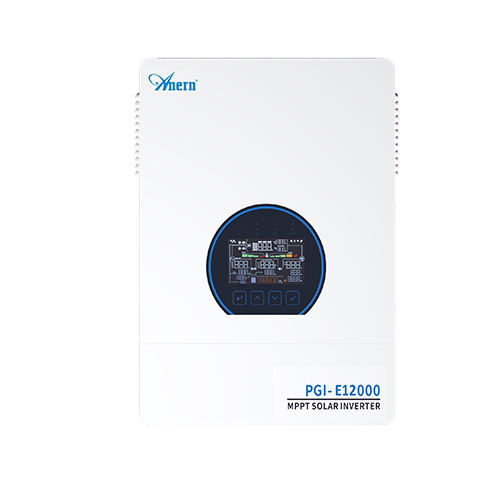

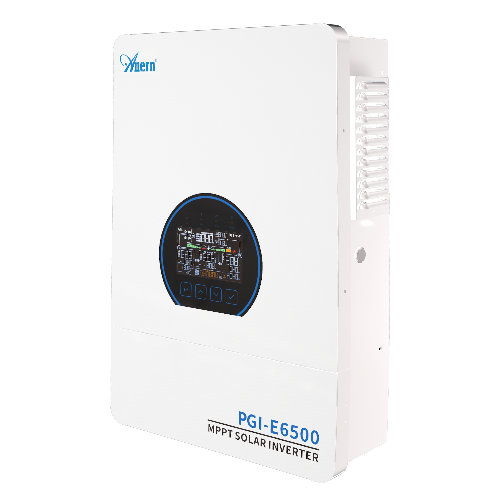

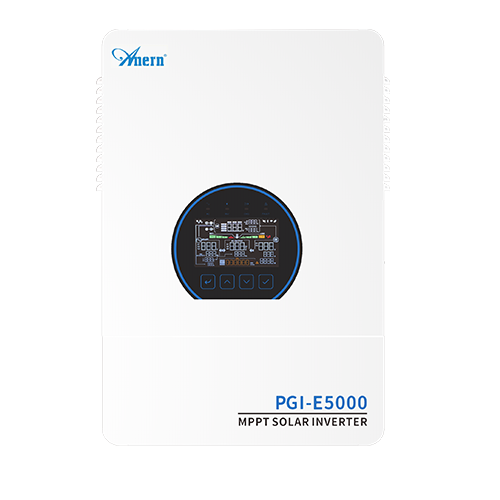

The Anern PGI-E Series IP54 Hybrid Solar Inverter is a powerful and intelligent energy solution designed for commercial, and off-grid solar power systems. Available in 5kW, 6.5kW, and 12kW models, the inverter delivers pure sine wave output for stable and reliable operation of household appliances and sensitive electronic equipment.Designed with an IP54 protection level and built-in anti-dust kit,it ensures reliable performance even in harsh environmental conditions.Combining high efficiency, durability, and advanced energy management, the Anern PGI-E Series is an ideal choice for modern solar energy storage and backup power applications.

IP65 Dual-Output Hybrid Solar Inverter Parameter



Model AN-PGI-E5000
AN-PGI-E6500
AN-PGI-E12000
Phase 1-phase in /1-phase out
Maximum PV Input Power 9000W
9000W
15000W
Rated Output Power
5000W
6500W
12000W
MPPT Voltage Range
60-450Vdc
Number of MPPT Trackers /Maximum Input Current
1/27A
1/27A
2/22.5A
Nominal Output Voltage
220/230/240VAC
Acceptable Input Voltage Range
90-280 VAC
Frequency Range
50 Hz/60 Hz(Auto sensing)
50 Hz/60 Hz(Auto sensing)
50 Hz/60 Hz(Auto sensing)
Nominal DC Voltage
24Vdc
48Vdc
48Vdc
Maximum Solar Charging Current
160A
 120A
160A
Maximum AC Charging Current
160A
 120A
160A
Maximum Charging Current
160A
 120A
160A
Dimension DxWxH(mm)
525*345*145
525*345*145
640*445*150
Net Weight (kg)
9.9kg
10.5kg
18.5kg
Packing details
Size: 595*415*205mm
595*415*205mm
710*515*205mm
G.W/Pcs: 11.4kg
12kg
18.5kg



Advantages of 5KW-12KW IP54 Hybrid Solar Inverter

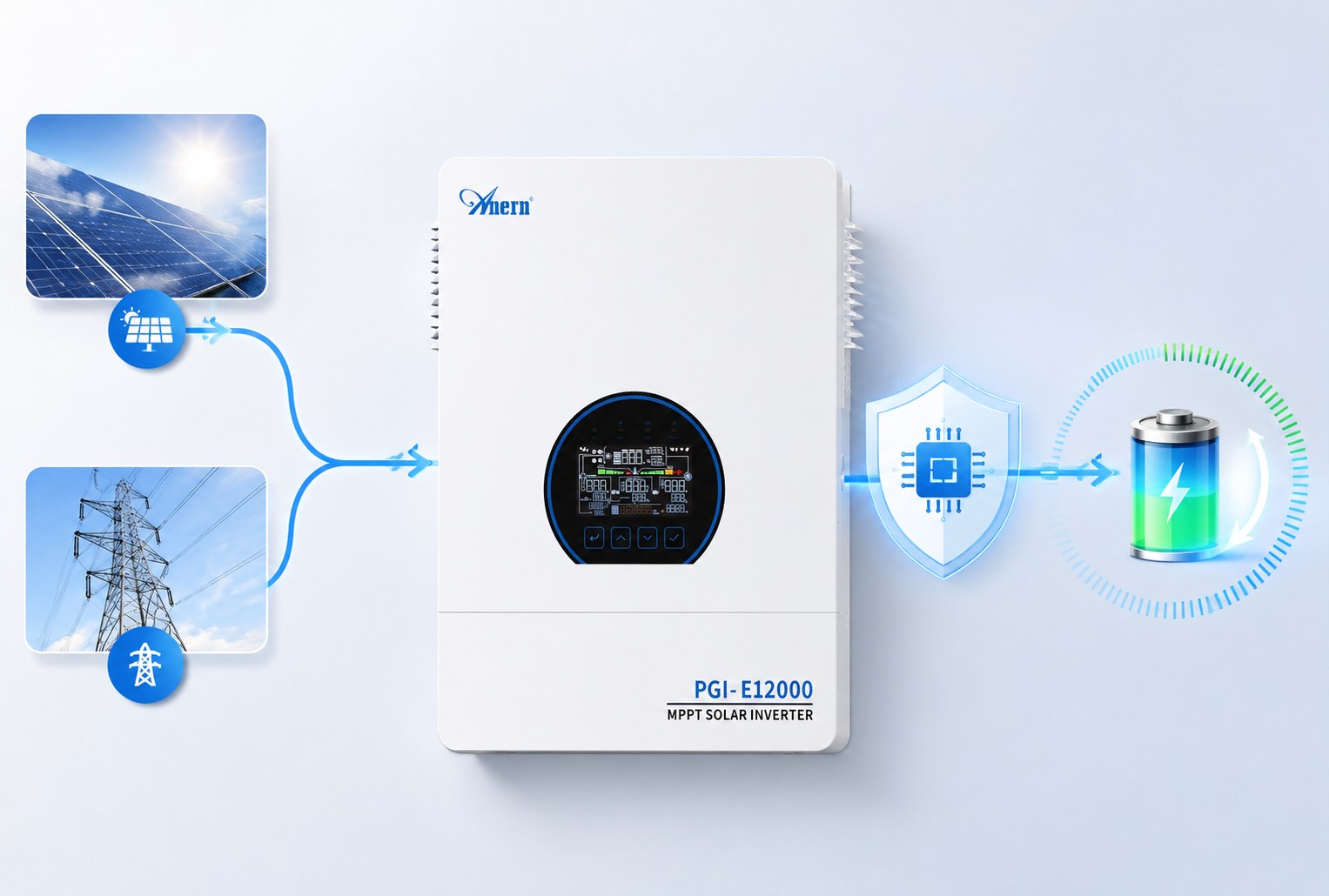

Wide PV Input Voltage Range & Flexible System Design

Supporting a PV input voltage range of 60-450VDC, the inverter accommodates various solar panel configurations and simplifies system planning and installation.

Pure Sine Wave Output & Safe Power Supply

Delivers clean and stable pure sine wave output, ensuring reliable performance for sensitive electronics, household appliances, and commercial equipment.

IP54 Protection Design & Reliable Outdoor Performance

The IP54-rated enclosure effectively protects the inverter against dust and water splashes, ensuring stable operation and long-term reliability in harsh environmental conditions.

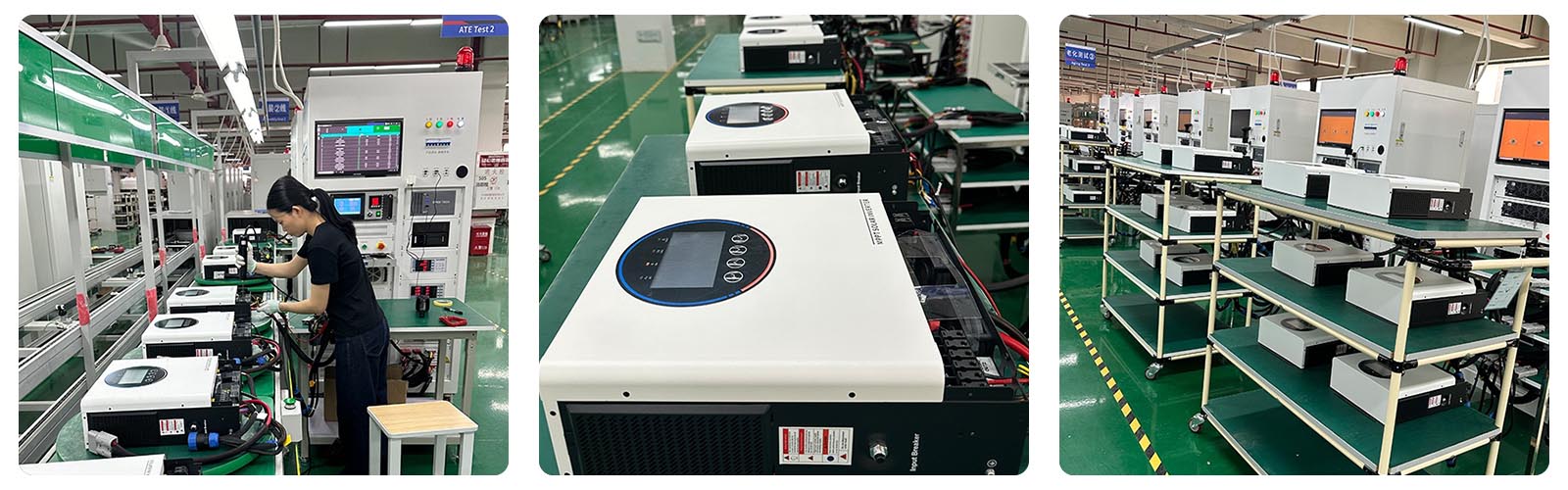

5KW-12KW IP54 Hybrid Solar Inverter Factory



ANERN is a professional solar inverter manufacturer dedicated to developing reliable and intelligent solar energy solutions. The PGI-E Series Hybrid Solar Inverter reflects ANERN's commitment to quality and innovation,Backed by advanced production facilities and a skilled R&D team, we continuously innovate to improve inverter efficiency, durability, and user experience.
