Anern’s 6KW/ 10KW MPPT Hybrid Solar Inverter is designed to provide sustainable power for all your needs. This inverter is the heart of a comprehensive solar system, offering a one-stop solution for reliable power.
Whether you're solar product wholesaler or a business looking for one-stop solution, Anern's solar inverter is a smart choice for any solar power system.
6KW 10KW Multi MPPT Hybrid Solar Inverter Parameter
Model | AN-PVI-6000 | AN-PVI-10000 |
Rated Output Power | 6000W | 10000W |
Maximum PV Input Power | 9000W | 13500W |
MPPT Voltage Range |
60-450Vdc |
|
Number of MPPT Trackers /Maximum Input Current |
2/18A |
3/18A |
Maximum AC Input Current |
40A |
50A |
Nominal Output Voltage |
220/230/240VAC |
|
Acceptable Input Voltage Range |
184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
|
Phase |
1-phase in /1-phase out |
|
Frequency Range |
50 Hz/60 Hz(Auto sensing) |
|
Dimension: D x W x H (mm) | 360x278x106mm | 360x310x107mm |
Net Weight (kgs) | 4.92kg | 6.5kg |
Advantages of 6KW 10KW Multi MPPT Hybrid Solar Inverter

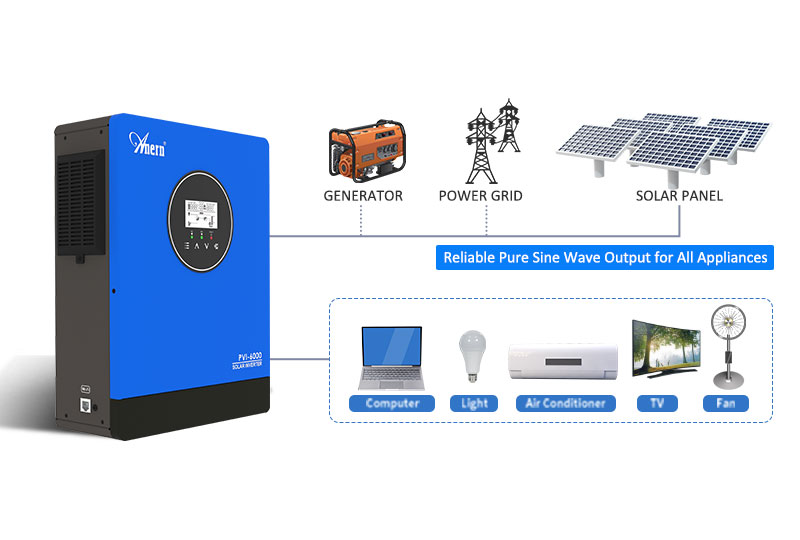

Reliable Pure Sine Wave Output for All Appliances
Anern’s pure sine wave technology ensures your devices operate efficiently without damage, from delicate computers to robust household appliances.

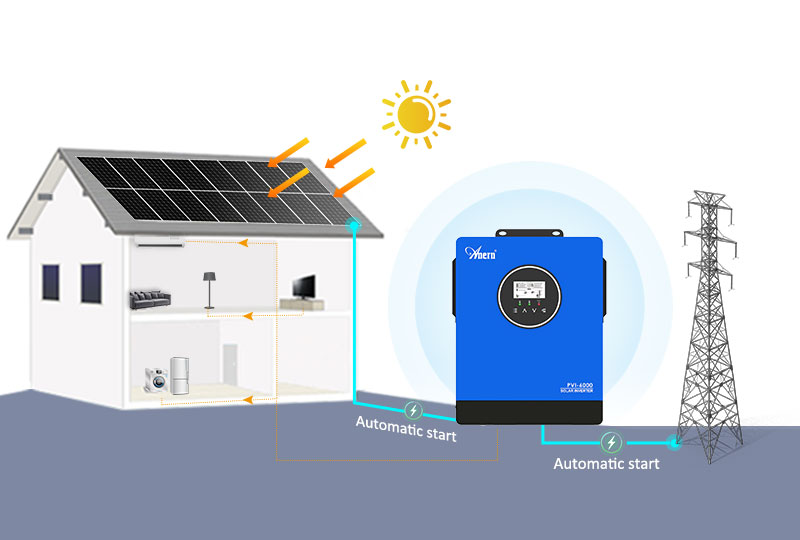

Intelligent & Customizable Power Management
With an adjustable input voltage range for appliances you have, you can customize settings through the user-friendly LCD display. The LCD screen also allows you to easily manage grid connection settings to suit your specific application. Our inverter meets utility voltage standards and automatically restarts when AC power is restored, ensuring seamless operation.

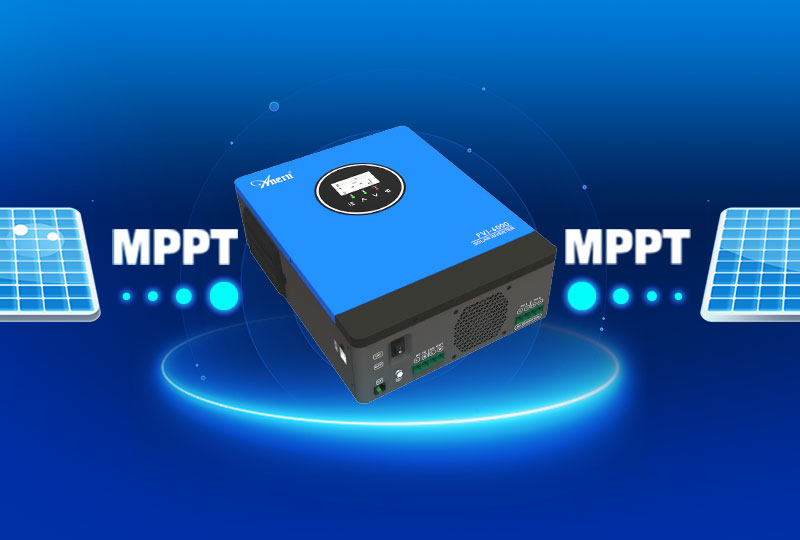

Multi-MPPT & Robust Protection
Advanced multi-MPPT technology (dual for 4KW& 6KW, triple for 10KW& 15KW) intelligently maximizes solar energy capture, even supporting high-power motors for various applications. Benefit from comprehensive safety features like overload, overheat, and short-circuit protection.
6KW 10KW Multi MPPT Hybrid Solar Inverter Factory
Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.
