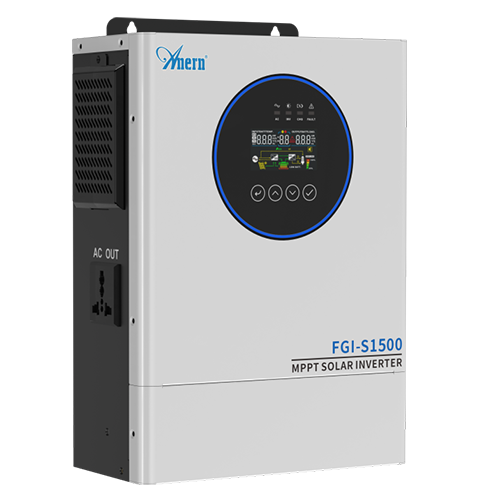

1.5KW-12KW Single-Phase MPPT Solar Inverter Manufacturer, 1.5KW-12KW Single-Phase MPPT Solar Inverter Factory

Products Details

Model	AN-FGI-S1500	AN-FGI-S2500	AN-FGI-S4000	AN-FGI-S5000	AN-FGI-S6500	AN-FGI-S12000
Phase	1-phase in /1-phase out
Maximum PV Input Power	800W	3000W	5000W	9000W	9000W	15000W
Rated Output Power	1500W	2500W	4000W	5000W	6500W	12000W
MPPT Voltage Range	17-115Vdc	30-400Vdc	60-450Vdc
Number of MPPT Trackers/Maximum Input Current	1/18A			1/27A		2/22.5A
Nominal Output Voltage	220/230/240VAC
Acceptable Input Voltage Range	90-280 VAC
Frequency Range	50 Hz/60 Hz(Auto sensing)
Nominal DC Voltage	12Vdc		24Vdc		48Vdc
Maximum Solar Charging Current	50A	100A	100A	160A	120A	160A
Maximum AC Charging Current	50A	100A	100A	160A	120A	160A
Maximum Charging Current	100A	100A	100A	160A	120A	160A
DimensionDxWxH(mm)	320227110	375290110	43528598	410336115	440355117	527435138
Net Weight (kg)	3.45kg	4.8kg	5.6kg	8.0kg	8.4kg	14.5kg
Packing details
Size	350270165mm	415340165mm	470335150mm	445385165mm	495415175mm	580500205mm
G.W/Pcs	4.15KG	5.6KG	6.3kg	8.8kg	9.4kg	16kg

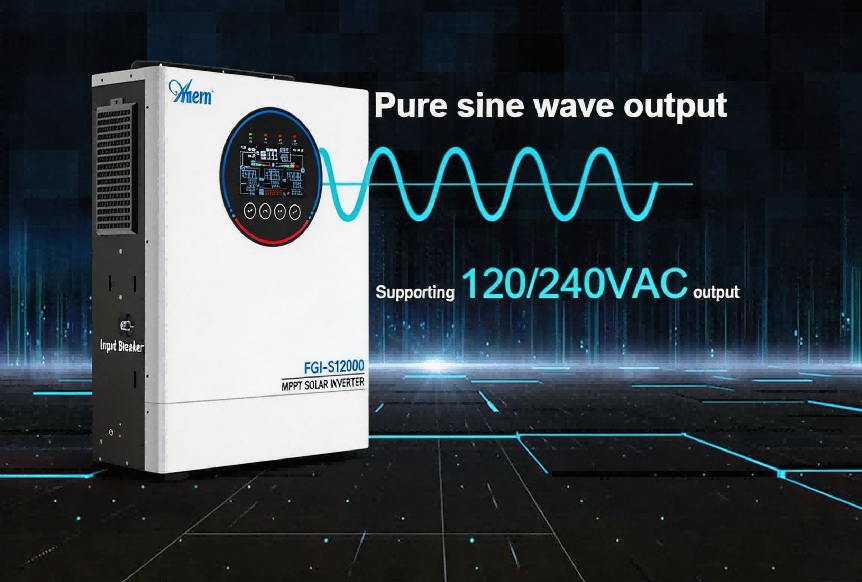

	Current and voltage stability Stable pure sine wave output, support normal operation without battery, greatly reduce system installation cost.

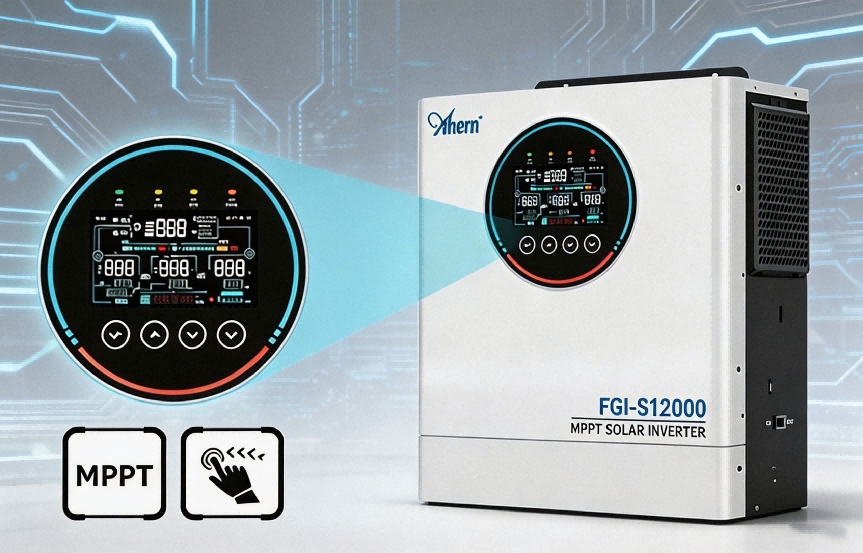

Built-in 160A MPPT Controller & Wide PV Input Voltage 160A large-current MPPT tracking + wide PV voltage range, realizing high-efficiency power generation and strong compatibility.

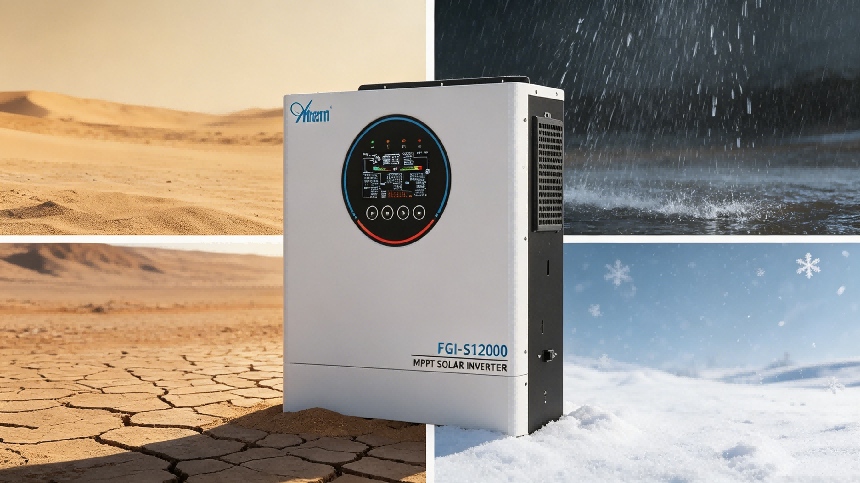

	Smart Battery Protection & Harsh Environment Resistance Dual lithium battery activation & intelligent charging protection + professional dustproof design for long serice life.

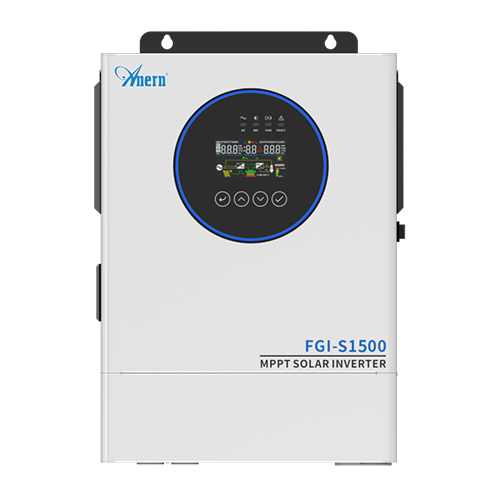

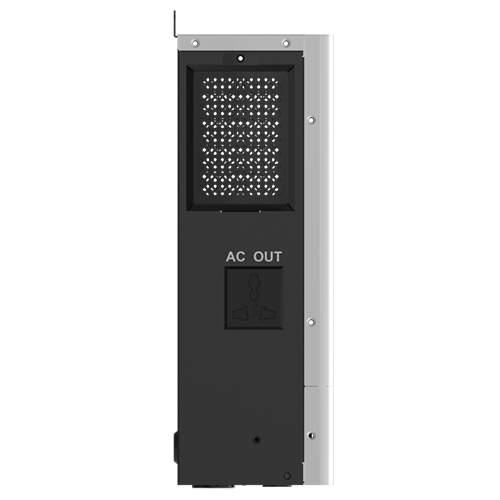

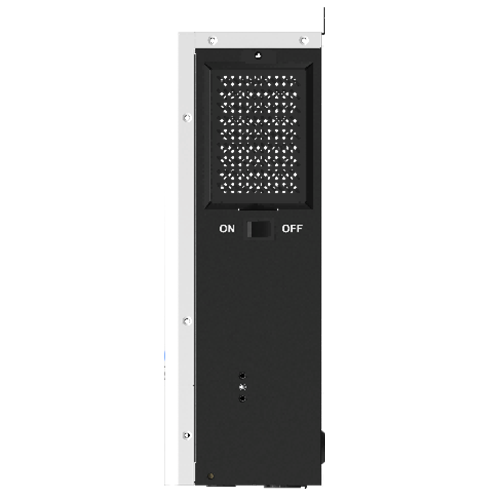

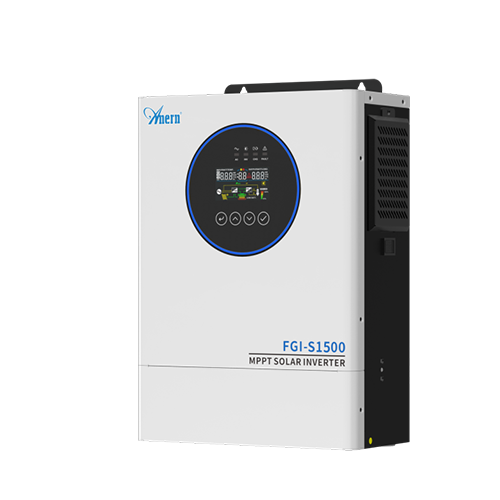

1.5KW-12KW Single-Phase MPPT Solar Inverter

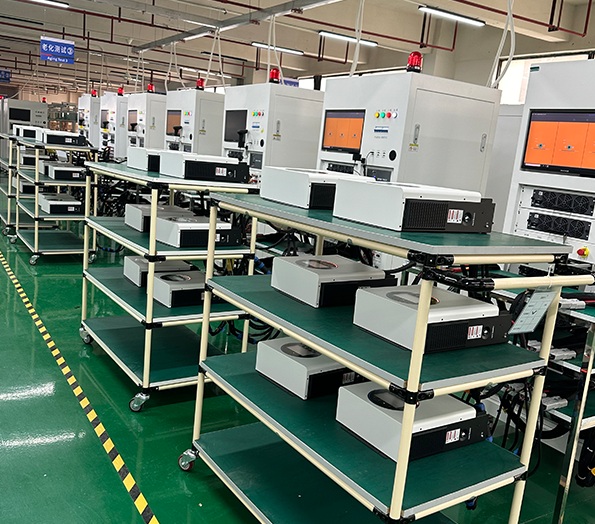

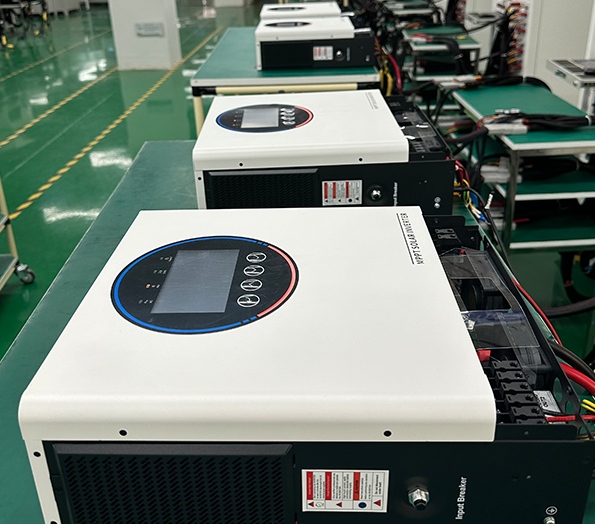

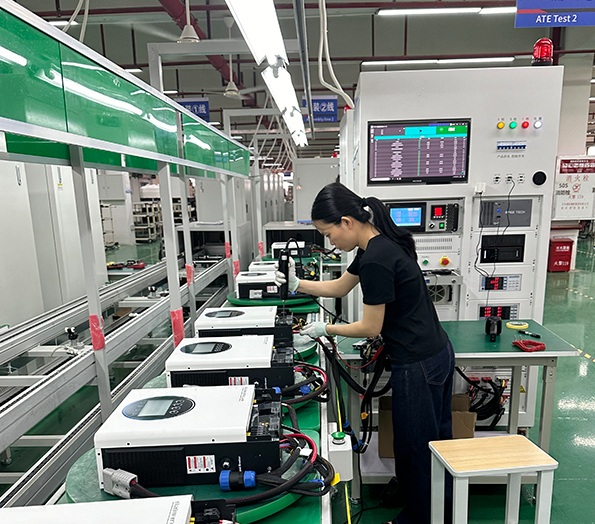

Anern Inverter Factory specializes in the design, development and production of advanced solar inverters to optimize product stability, intelligence and environmental adaptability. All products are certified with ISO9001, CE, ROHS and TUV, fully meeting international quality standards. With mature manufacturing technology and rich industry experience, Anern is dedicated to providing global customers with reliable, high-efficiency and cost-effective solar inverter products.
