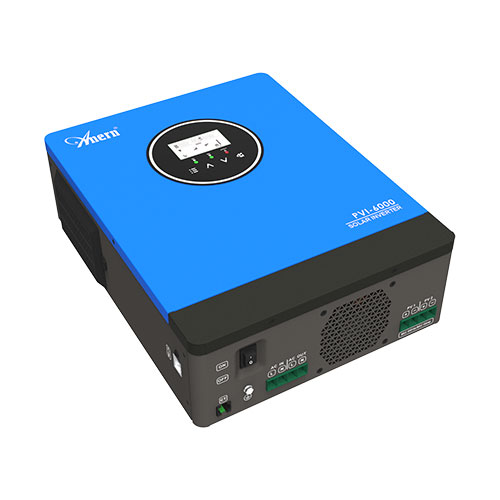

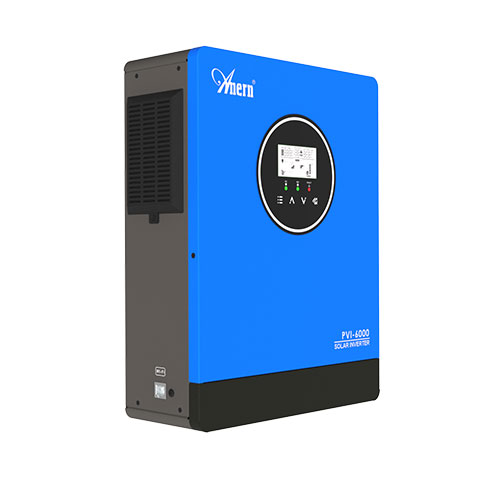

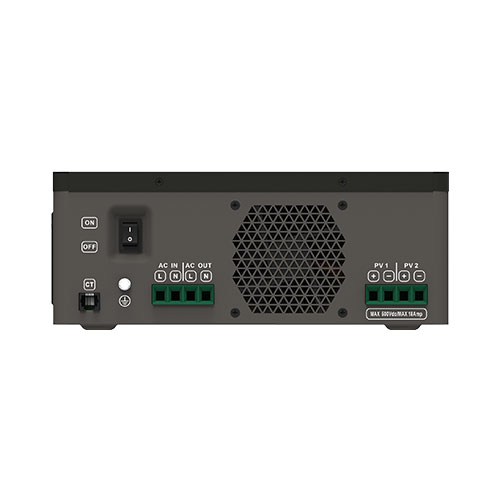

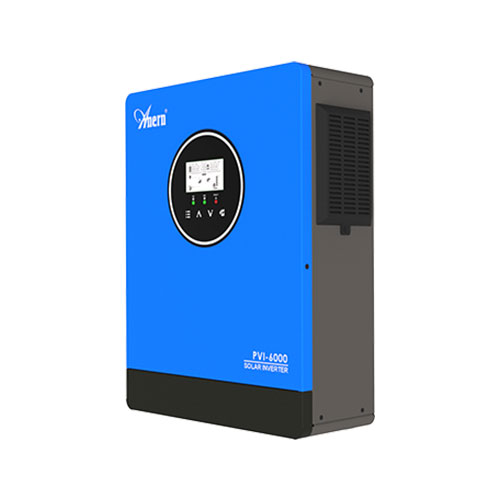

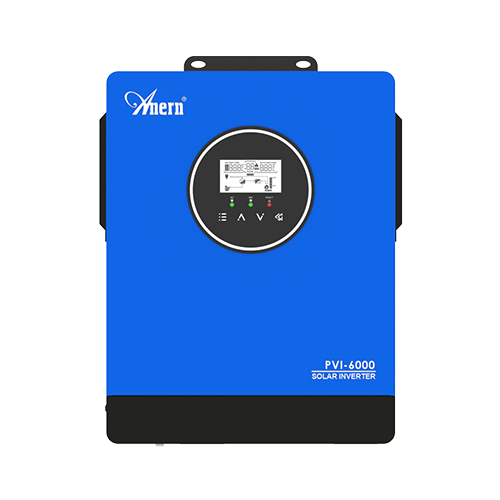

6KW 10KW MPPT Hybrid Solar Inverter

Anern’s 6KW/ 10KW MPPT Hybrid Solar Inverter is designed to provide sustainable power for all your needs. This inverter is the heart of a comprehensive solar system, offering a one-stop solution for reliable power. Whether you're a solar product wholesaler or a business looking for a one-stop solution, Anern's solar inverter is a smart choice for any solar power system.

6KW 10KW MPPT Hybrid Solar Inverter Parameter



Model AN-PVI-6000 AN-PVI-10000
Rated Output Power 6000W 10000W
Maximum PV Input Power 9000W 13500W
MPPT Voltage Range
60-450Vdc
Number of MPPT Trackers /Maximum Input Current
2/18A
3/18A
Maximum AC Input Current
40A
50A
Nominal Output Voltage
220/230/240VAC
Acceptable Input Voltage Range
184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable)
Phase
1-phase in /1-phase out
Frequency Range
50 Hz/60 Hz(Auto sensing)
Dimension: D x W x H (mm) 360x278x106mm 360x310x107mm
Net Weight (kgs) 4.92kg 6.5kg



Advantages of 6KW 10KW MPPT Hybrid Solar Inverter


  • Reliable Pure Sine Wave Output for All Appliances
    Anern’s pure sine wave technology ensures your devices operate efficiently without damage, from delicate computers to robust household appliances.

  • Intelligent & Customizable Power Management
    With an adjustable input voltage range for appliances you have, you can customize settings through the user-friendly LCD display. The LCD screen also allows you to easily manage grid connection settings to suit your specific application. Our inverter meets utility voltage standards and automatically restarts when AC power is restored, ensuring seamless operation.

  • Multi-MPPT & Robust Protection
    Advanced multi-MPPT technology (dual for 4KW& 6KW, triple for 10KW& 15KW) intelligently maximizes solar energy capture, even supporting high-power motors for various applications. Benefit from comprehensive safety features like overload, overheat, and short-circuit protection.

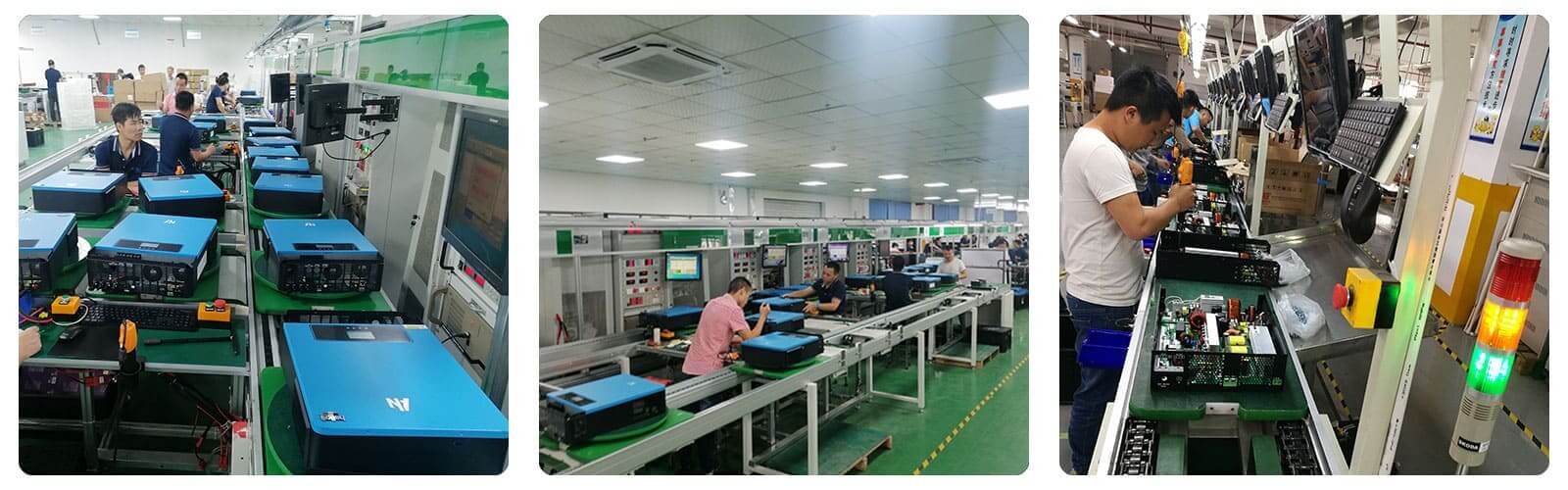

6KW 10KW MPPT Hybrid Solar Inverter Factory



Anern Inverter Factory focuses on the design and development of solar inverters in order to continuously improve the performance and efficiency of inverters. All products have passed ISO9001, CE, ROHS and TUV certifications, and product quality is in line with international standards. As a leader in the solar industry, Anern is committed to providing customers with high-quality and high-efficiency inverter products.

MPPT Hybrid Solar Inverter Factory





Get In Touch

Contact us for a free quote with specific details

Leave a Message
submit

RELATED PRODUCTS

10.2KW Hybrid Solar Inverter
AN-SCI-EVO 10200 series hybrid solar inverters It has dual PV inputs and dual AC outputs function to ensure the stability of the load. WIFI Communication, Remote monitoring of the operating status of the inverter through the terminal device ensures the good operation of the whole system. It also adopts a newly developed LCD display with Touch button function, which is more convenient to use and has a more premium look.  With maximum power up to 10200W, equipped with advanced electronic components and control technology, it can realize efficient power conversion and stable power output to meet higher power demand, which is the perfect solution for off-grid standby power supply for families and small businesses.
Send Inquiry
4.2KW 6.2KW Dual AC Output Hybrid Solar Inverter
 AN-SCI-EVO 4200 & 6200 series hybrid solar inverter. Distinguished from other hybrid inverters on the market, with dual AC output and more transportable design. When the battery voltage is low, the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load. Anern EVO4200&6200 series solar hybrid inverter is one of the most demanded inverters in the market due to its moderate capacity, comprehensive functions and high compatibility. It can fulfill the solar power needs of home and small commercial users and provide them with reliable and efficient solar power conversion solutions.
Send Inquiry
Intelligent Hybrid Solar Inverter 2KW&3.2KW
Anern's intelligent hybrid inverters are widely applicable in solar power systems and commercial applications. It features built-in MPPT technology for maximum solar energy harvest, supports a 140A solar AC charging current, and offers intelligent battery charging. Additionally, it supports WiFi control and enjoys the flexibility of time charging function. With Anern solar inverters, wholesalers can upgrade their products to meet the growing demand for renewable energy solutions.
Send Inquiry
2KW 3.2KW Off-Grid Hybrid Solar Inverter
AN-SCI-EVO2000&3200 series off-grid inverters. As a hybrid inverter that combines the functions of inverter and controller, the MPPT voltage range is 30-400 VDC, allowing the first time the open circuit voltage of the connected solar panels is higher than 35 VDC, and the later 30 VDC stable input allows the inverter to be used normally. It means that less solar panels are needed to power on. It is a more economical and efficient solar energy solution for homes and small commercial systems.
Send Inquiry
1KW 1.5KW MPPT Hybrid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Send Inquiry
Wifi-Communicated Hybrid Solar Inverter
The SCI02-PRO series hybrid inverter is a patented product developed by Anern 2022. High-grade appearance design, special RGB light design for displaying operation mode. This design can reflect the operating status and working mode of the inverter through different colors. Running without batteries, increasing system flexibility and reliability and reducing the need and cost of batteries. Anern's SCI02-PRO series hybrid inverters are widely applicable in solar power systems and other energy applications.
Send Inquiry
