460W P-Type Solar Panel Half-Cut

Solar energy panels
460W P-Type Solar Panel
460W Solar Panel Half-Cut
Mono PERC Half-Cut Solar Panels
Long Lifespan Solar Cell

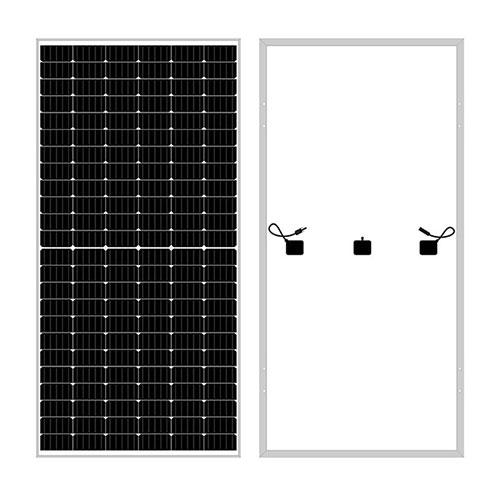

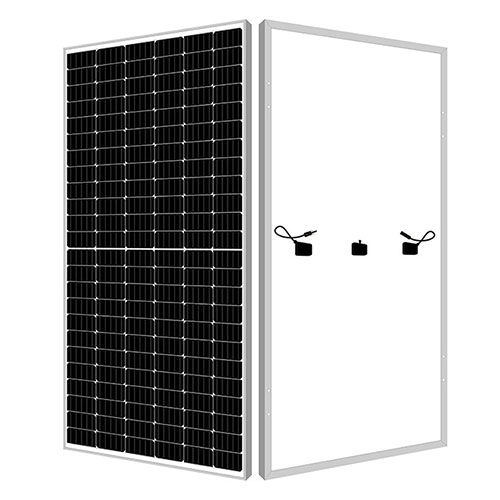

460W P-Type Solar Panel Half-Cut

Anern's half-cut solar panels utilize non-destructive half-cutting technology, lossless cutting technology, no mechanical damage and its smooth cutting surface without burrs. It has a low risk of cell breakage, reducing microcracking by more than 50%, and it shades a small area. And the panel adopts advanced high-density packaging technology to ensure the perfect balance of efficiency and reliability, and the efficiency of the module has been increased by more than 0.15%. The 460W Half-Cut Solar Panel can provide you with reliable backup power in a variety of scenarios.



460W P-Type Solar Panel Half-Cut Parameter



Model ANM-G400W (Full Black) ANM-G410W ANM-G460W ANM-G550W
PM(w) 400W 410W 460W 550W
Maximum Power Voltage 31.00V 31.30V 35.07V 42.00V
Maximum Power Current 12.91A 13.10A 13.12A 13.12A
Open Circuit  Voltage 37.00V 37.30V 41.55V 49.80V
Short Circuit Current 13.60A 13.79A 14.05A 13.98A
Module Size 1722*1134*30mm 1722*1134*30mm 1909*1134*30mm 2278*1134*30/35mm
Weight 22.0kgs 21.5kgs 23.1kgs 27.3kgs






Half-Cut Technique
Anern has been focusing on developing more efficient solar panels. The solar panel 460w product shows a important process to improve the efficiency of solar panels ----- Half-cut technology.
Half-cut technology refers to the whole silicon wafer cut into two half pieces, which is an important process in the production of solar panels. The process of half-cut technology mainly includes cutting, cleaning, polishing and corrosion steps. Due to the quality will affect the performance and efficiency of solar panels, the quality requirements of the half-cut process are very high, and the quality of all half sheets must be ensured.

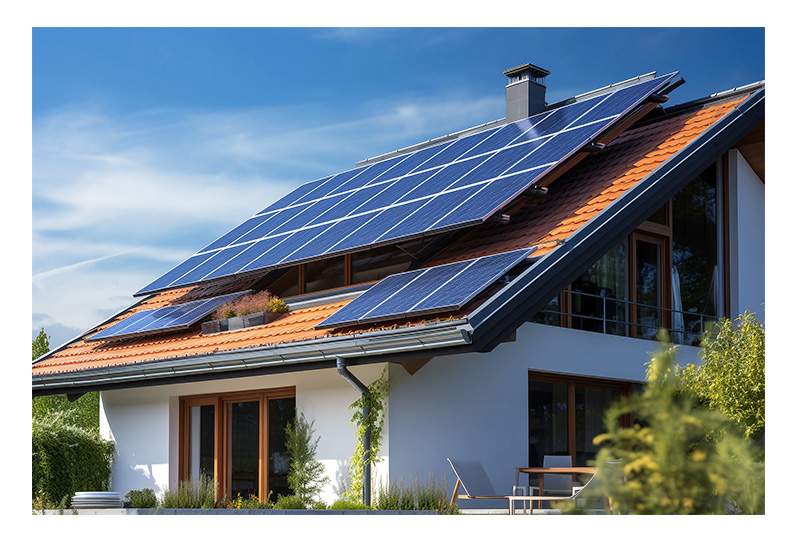

460W P-Type Solar Panel Half-Cut Installation

460W P-Type Solar Panel Half-Cut Installation



Anern all types of solar panel are accompanied by a comprehensive instruction manual, which can be found in Service --- Document Download on website.



If you are interested in exploring our complete series of solar panels, we invite you to visit the dedicated solar panel category on our website.



In case you require assistance in selecting solar panel for your needs or have any technical inquiries, we offer complimentary consultation services. Feel free to reach out to us via email or phone. (You can find detailed information on Contact Us page.)

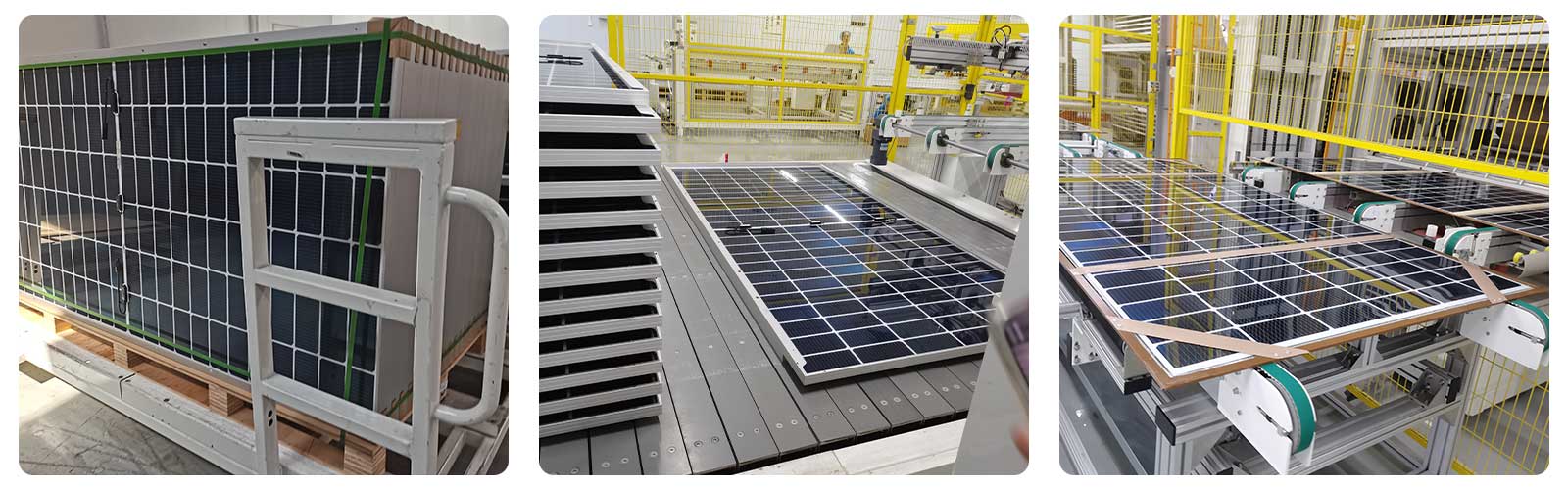

 460W P-Type Solar Panel Half-Cut Factory



Anern photovoltaic panel factory primarily produces solar panels of various specifications and power capacities to meet the diverse needs of customers. Anern factory strictly adheres to international standards during the production process. All products have obtained international safety certifications such as ISO9001, CE, TUV, and more. In addition, to meeting the market demand for solar energy products, Anern also provides a range of pre-sales and post-sales services to ensure customer satisfaction.



  460W P-Type Solar Panel Half-Cut Factory

Get In Touch

Contact us for a free quote with specific details

Leave a Message
submit

RELATED PRODUCTS

580W N-Type Bifacial Solar Panel
Solar panels are the core component of the solar power system, N-Type series solar panels, The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction. Better light trapping and current collection to improve module power output and reliability, Efficiency of up to 22.45%. It can provide better solar panel solutions to meet different application needs and promote the development and application of solar power systems.
Send Inquiry
430W N-Type Dual Glass Solar Panel
Anern's N-Series solar panels utilize a combination of half-cut cell technology and bifacial modules. It also utilizes Hot 2.0 technology for increased reliability. Compared to traditional solar panels, it absorbs sunlight on both sides so that the power output and efficiency of the module is greatly improved. N-type modules averagely generate 3 .9% more electricity than traditional modules.
Send Inquiry

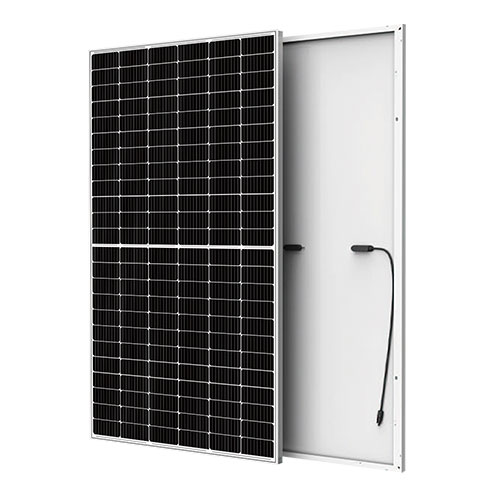

580W N-Type Mono Perc Half Cut Solar Panel
Anern N-type Mono Perc Half-cut Solar Panel,assembled with multi-busbar PERC technique and half-cut structure. Through the half-cut technology, the current through each busbar is raduced to 1/2 than before. Therefore, the internal power loss of the half-cut module is reduced to 1/4 for the whole mould. Better light utilization and current collection,improve product power output and reliability.
Send Inquiry
550W P-Type Half-Cut Solar Cell
P-type half-cut solar panel adopts half-cut technology to convert solar energy into electricity more effectively and improve the energy conversion efficiency. Adopts advanced high-density encapsulation technology to ensure the perfect balance of efficiency and reliability. which is manufactured by high-precision tools to work well in harsh environments and have a long service life for a variety of scenarios.
Send Inquiry
410W P-Type Half-Cell Mono Solar Panel
The 410W P-Type Half-Cell Mono Solar Panel adopts the Up-down symmetrical parallel module design, which can effectively reduce current mismatch caused by shading and other conditions. In addition, the 410W P-Type Half-Cell Mono Solar Panel can provide you with the double guarantee of efficient power generation and stability and reliability. This solar panel adopts advanced high-density encapsulation technology, which greatly improves the Module efficiency, and then its micro-cracking is reduced by more than 50%. This product also enjoys a 25-year warranty, which can bring you long-term and stable power generation benefits.
Send Inquiry
Monocrystalline Solar Panel
Monocrystalline solar panels are a kind of solar panels made of monocrystalline silicon cell. It has a unique crystal structure that makes its conversion efficiency very high. The module conversion rate is as high as 22%. Monocrystalline solar panels have a wide power range from 60W to 300W. Users can find the solar panels suitable for their power levels according to electricity needs. In addition, the monocrystalline solar panels are also equipped with a Junction Box with a protection degree of IP67 or above, which can effectively prevent the entry of external substances such as moisture and dust, thereby ensuring the stability and long-term use of the system.
Send Inquiry
