410W P-Type Half-Cell Mono Solar Panel

The 410W P-Type Half-Cell Mono Solar Panel adopts the Up-down symmetrical parallel module design, which can effectively reduce current mismatch caused by shading and other conditions. In addition, the 410W P-Type Half-Cell Mono Solar Panel can provide you with the double guarantee of efficient power generation and stability and reliability. This solar panel adopts advanced high-density encapsulation technology, which greatly improves the Module efficiency, and then its micro-cracking is reduced by more than 50%. This product also enjoys a 25-year warranty, which can bring you long-term and stable power generation benefits.

 410W P-Type Half-Cell Mono Solar Panel Parameter


Model ANM-G400W (Full Black) ANM-G410W ANM-G460W ANM-G550W
PM(w) 400W 410W 460W 550W
Maximum Power Voltage 31.00V 31.30V 35.07V 42.00V
Maximum Power Current 12.91A 13.10A 13.12A 13.12A
Open Circuit  Voltage 37.00V 37.30V 41.55V 49.80V
Short Circuit Current 13.60A 13.79A 14.05A 13.98A
Module Size 1722*1134*30mm 1722*1134*30mm 1909*1134*30mm 2278*1134*30/35mm
Weight 22.0kgs 21.5kgs 23.1kgs 27.3kgs


Factors Affecting The Efficiency And Performance of Solar Panels


Factors affecting the efficiency and performance of solar panels

1. Installation position: The key to the function of solar panels is the amount of solar energy absorbed, which can be converted into electricity. The recommended installation position is 15 degrees to the south, which allows the solar panel to receive the maximum area of sunlight.

2. Solar irradiation: Sunlight is important to the operation of solar panels, the amount of electricity generated by solar panels is directly proportional to the amount of sunlight falling on the panels.

3. Temperature: When purchasing solar panels, the average temperature of the region should be considered, and it should also be ensured that the panels are placed in a location where there is sufficient airflow to maintain the performance of the solar panels.

4. Regular Maintenance: Solar panels require regular maintenance and cleaning, which plays an important role in improving their efficiency and extending their lifespan.

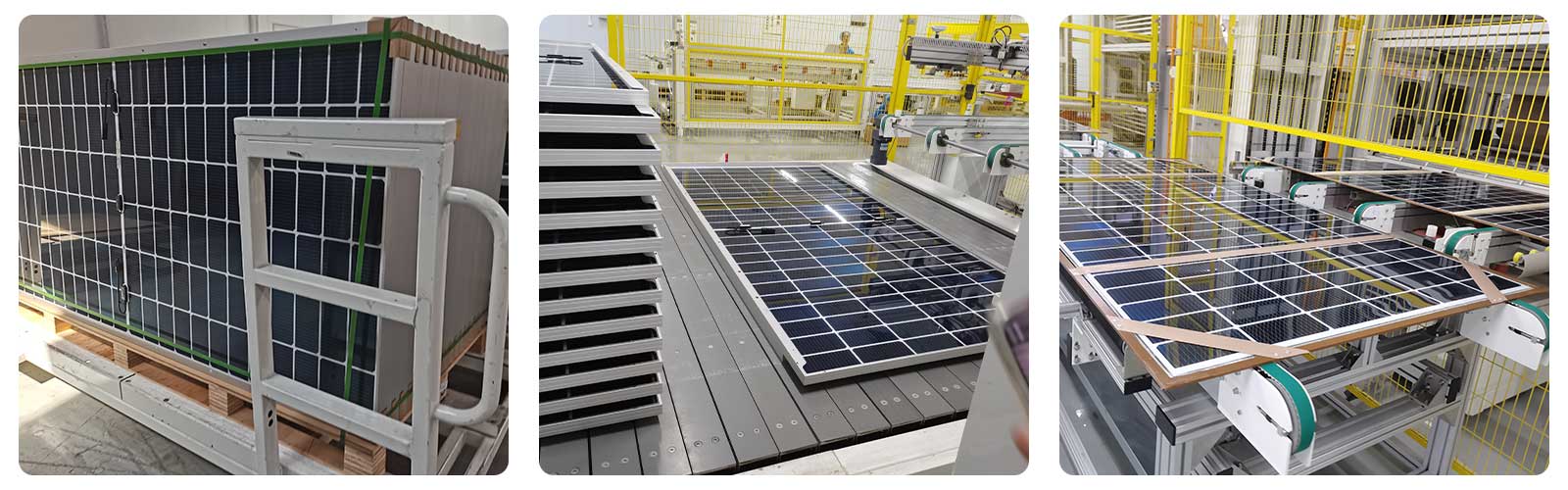

410W P-Type Half-Cell Mono Solar Panel Factory


Anern Mono Solar Panel Factory mainly produces P-type half mono solar panels, and the production process follows strict quality control standards. The factory is equipped with advanced production equipment and technical team to ensure that every production process meets international standards. Through a strict quality control and testing process, we are able to achieve excellence in both appearance and performance. This manufacturing process of excellence has enabled Anern P-type mono solar panels to enjoy a good reputation.


410W P-Type Half-Cell Mono Solar Panel Factory

Get In Touch

Contact us for a free quote with specific details

Leave a Message


580W N-Type Bifacial Solar Panel
Solar panels are the core component of the solar power system, N-Type series solar panels, The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction. Better light trapping and current collection to improve module power output and reliability, Efficiency of up to 22.45%. It can provide better solar panel solutions to meet different application needs and promote the development and application of solar power systems.
Send Inquiry
430W N-Type Dual Glass Solar Panel
Anern's N-Series solar panels utilize a combination of half-cut cell technology and bifacial modules. It also utilizes Hot 2.0 technology for increased reliability. Compared to traditional solar panels, it absorbs sunlight on both sides so that the power output and efficiency of the module is greatly improved. N-type modules averagely generate 3 .9% more electricity than traditional modules.
Send Inquiry
580W N-Type Mono Perc Half Cut Solar Panel
Anern N-type Mono Perc Half-cut Solar Panel,assembled with multi-busbar PERC technique and half-cut structure. Through the half-cut technology, the current through each busbar is raduced to 1/2 than before. Therefore, the internal power loss of the half-cut module is reduced to 1/4 for the whole mould. Better light utilization and current collection,improve product power output and reliability.
Send Inquiry
550W P-Type Half-Cut Solar Cell
P-type half-cut solar panel adopts half-cut technology to convert solar energy into electricity more effectively and improve the energy conversion efficiency. Adopts advanced high-density encapsulation technology to ensure the perfect balance of efficiency and reliability. which is manufactured by high-precision tools to work well in harsh environments and have a long service life for a variety of scenarios.
Send Inquiry
460W P-Type Solar Panel Half-Cut
Anern's half-cut solar panels utilize non-destructive half-cutting technology, lossless cutting technology, no mechanical damage and its smooth cutting surface without burrs. It has a low risk of cell breakage, reducing microcracking by more than 50%, and it shades a small area. And the panel adopts advanced high-density packaging technology to ensure the perfect balance of efficiency and reliability, and the efficiency of the module has been increased by more than 0.15%. The 460W Half-Cut Solar Panel can provide you with reliable backup power in a variety of scenarios.
Send Inquiry
Monocrystalline Solar Panel
Monocrystalline solar panels are a kind of solar panels made of monocrystalline silicon cell. It has a unique crystal structure that makes its conversion efficiency very high. The module conversion rate is as high as 22%. Monocrystalline solar panels have a wide power range from 60W to 300W. Users can find the solar panels suitable for their power levels according to electricity needs. In addition, the monocrystalline solar panels are also equipped with a Junction Box with a protection degree of IP67 or above, which can effectively prevent the entry of external substances such as moisture and dust, thereby ensuring the stability and long-term use of the system.
Send Inquiry
