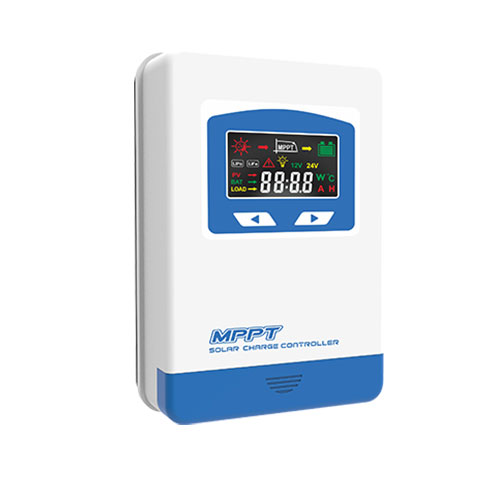

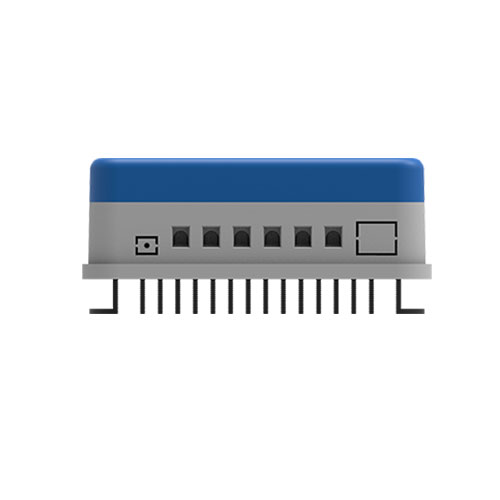

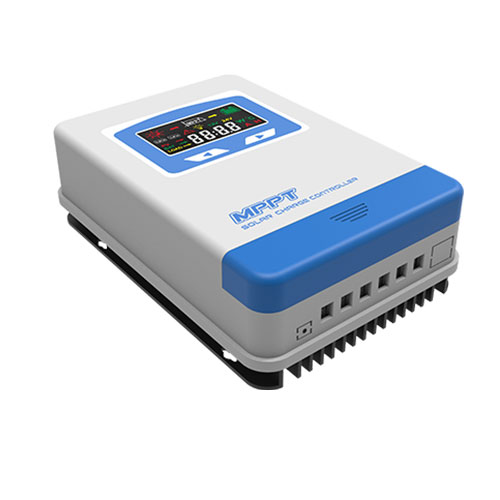

20A 30A 40A 60A Mppt Solar Controller

MPPT solar controller adopts maximum power point tracking technology. Anern's new generation controllers, the MSC series, are solar controllers that adopts our own technology.The MPPT tracking efficiency is 99.5%, and the power generation efficiency of the entire system can reach 97%. Compared with the PWM controller, The MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.

20A 30A 40A 60A Mppt Solar Controller Parameter



Item No. DC Voltage(Auto) DC Voltage(Auto) PV Maximum Input Voltage Carton Dimension(mm) PC/Carton G.W Remark
AN-MSC-20A 12/24V 20A 60V 178*123.5*48 30 19kg Color LCD display/Support charging Lead-acid battery & lithium battery/Plastic Cover
AN-MSC-30A 12/24V 30A 100V 178*123.5*48 20 18kg
AN-MSC-40A 12/24V 40A 100V 218*149*67 12 19kg
AN-MSC-60A 12/24/48V 60A 150V 495*445*330 6 16kg






Feature of MPPT Solar Charge Controller
12/24/48V automatic voltage identification; Battery types are available; Offers multiple protections; Built-in or external bluetooth monitoring system; 150V wide PV array maximum power point operating voltage range; Suitable for Different Batteries. Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2.


mppt solar controller-1

Multiple Working Modes

LD1: Regular Mode

LD2: Light Control Mode

LD3: Light & Time Control Mode

LD4: Reverse Light Control Mode



mppt solar controller-2

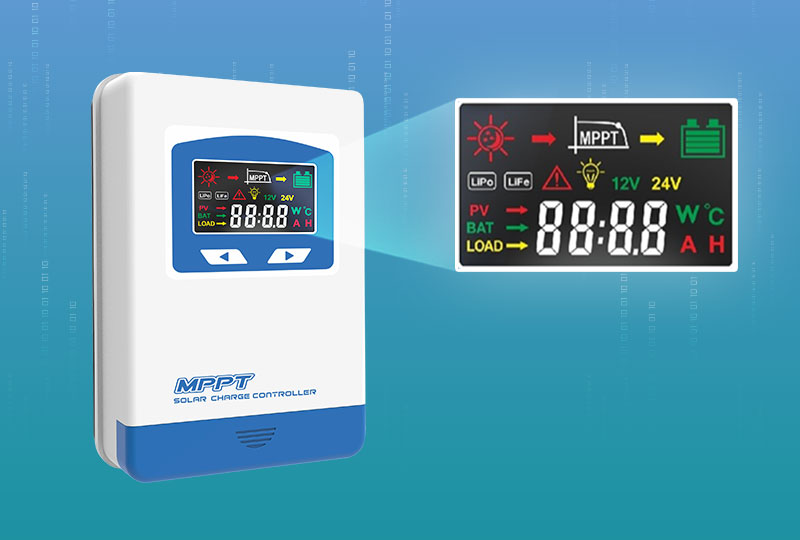

Color LCD Display

Color LCD is designed to dynamically display. Easy to operate, data and working modes of equipment are displayed in real-times.

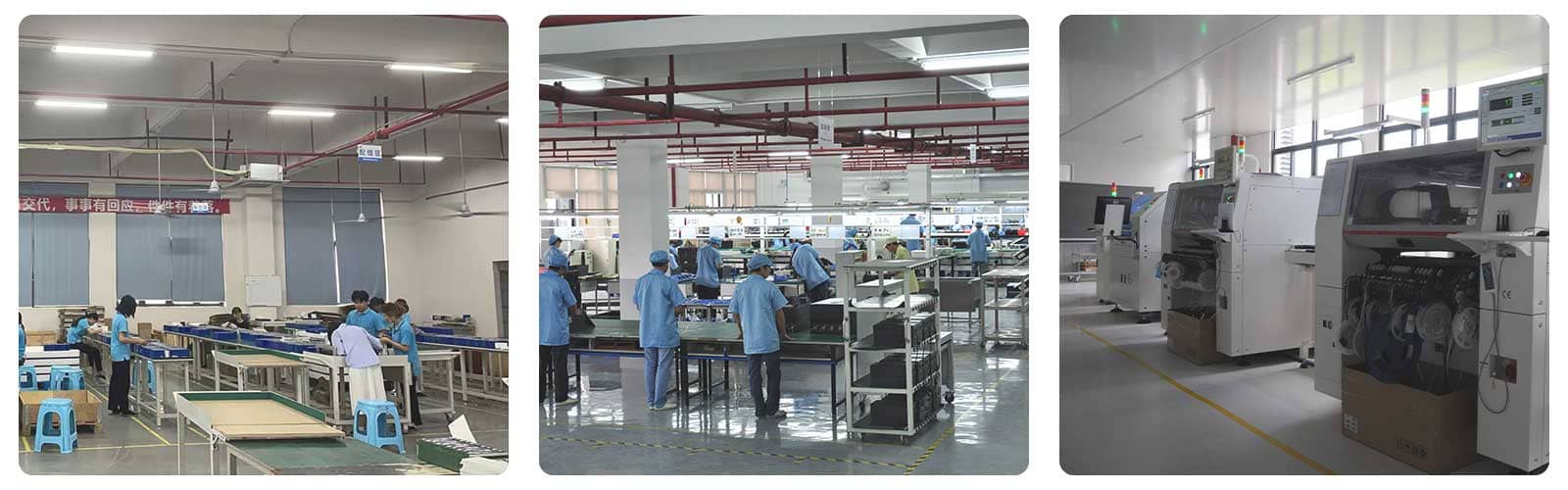

20A 30A 40A 60A Mppt Solar Controller Factory



Solar Controller Factory, where technology and sustainable energy meet. We are committed to building high-performance, reliable and stable solar Controllers. Adopting advanced technology and strict quality control, we endeavor to provide our customers with the best quality solar energy conversion solutions.



mppt solar controller-factory
