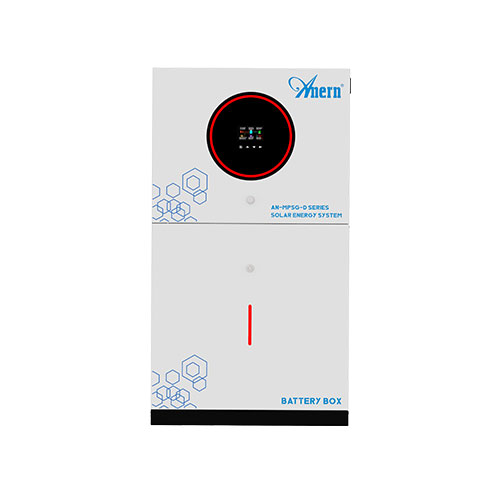

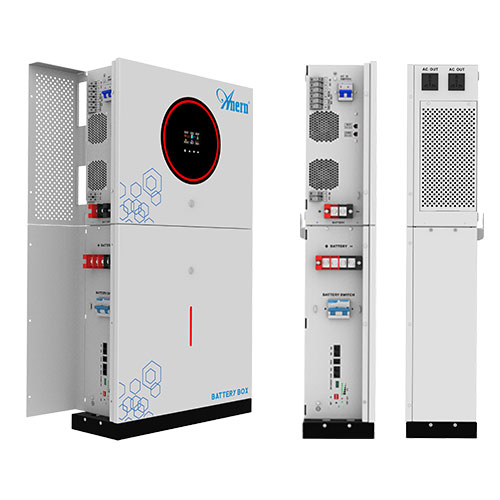

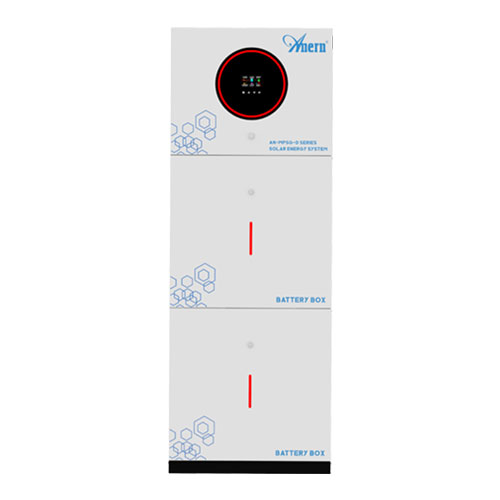

Solar Stacked Energy Battery Storage System

This is an advanced stacked solar energy storage system developed by Anern. The system is designed to meet various energy needs, with highly integrated performance, providing a comprehensive solar energy solution. Models with rated power of 4200W, 6200W and high capacity 10200W are available to adapt to various application scales. This integrated energy storage system seamlessly integrates pure sine wave solar hybrid inverters and intelligent energy management, making it an ideal choice for large power consumers as well as commercial applications.

Send Inquiry

Products Details

Solar Stacked Energy Battery Storage System Parameter

Model: INVERTER	MSPG-D4200	MSPG-D6200	MSPG-D10200
Maximum PV Input Power	6200W	6500W	10800W
MPPT Voltage Range	60-450Vdc	60-450Vdc	90-450Vdc
Number of MPPT Trackers /Maximum Input Current	1/18A	1/22A	2/18A
Rated Output Power	4200W	6200W	10200W
Nominal Output Voltage	220/230/240VAC	220/230/240VAC	220/230/240VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Frequency Range	50 Hz/60 Hz(Auto sensing)
Maximum AC Input Current	30A	40A	50A
Nominal DC Voltage	24V dc	48V dc	48V dc
Maximum Charging Current	120A	120A	160A
Maximum AC Charging Current	100A	100A	160A
Model: Battery
Typical Voltage	25.6V	51.2V	51.2V
Typical Capacity	200AH*1pcs	100AH*2pcs	100AH*3pcs
Energy storage	5KWH	10KWH	15KWH
Max. Charge Current	50A	100A	150A
Max. Discharge Current	200A	200A	300A
Battery Type	LiFePO4

Advantages Of Solar Stacked Energy Battery Storage System

Pure Sine Wave Output

Provides clean and stable power, ensuring compatibility with a wide range of electronic devices.
Pv Automatic Activation Of Lithium Battery
Wifi monitoring. With a wide PV input range. When the energy is sufficient It can be powered directly without the battery.

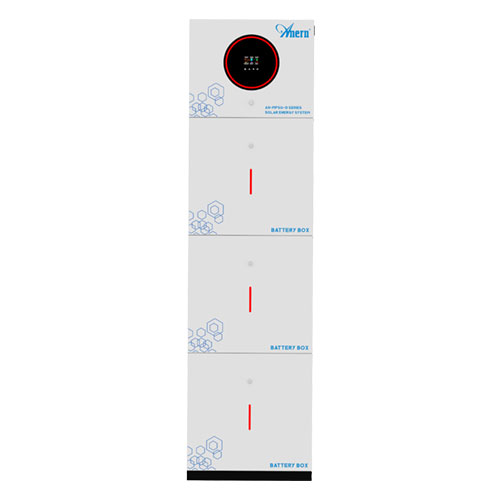

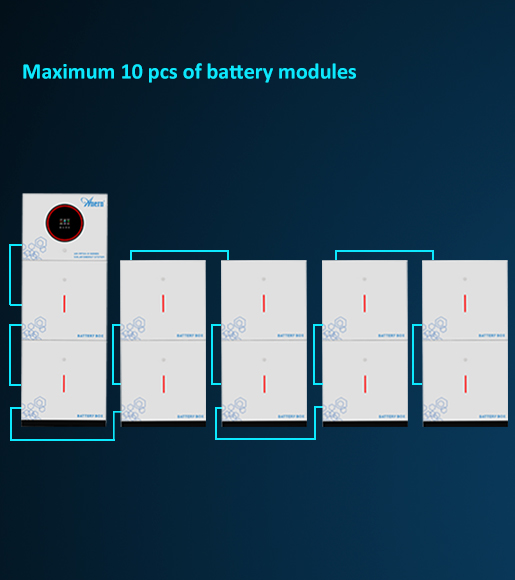

Optional Expansion
The stackable modular design, which can accommodate up to 10 battery modules, is highly flexible and allows users to expand their energy storage capacity as needed.

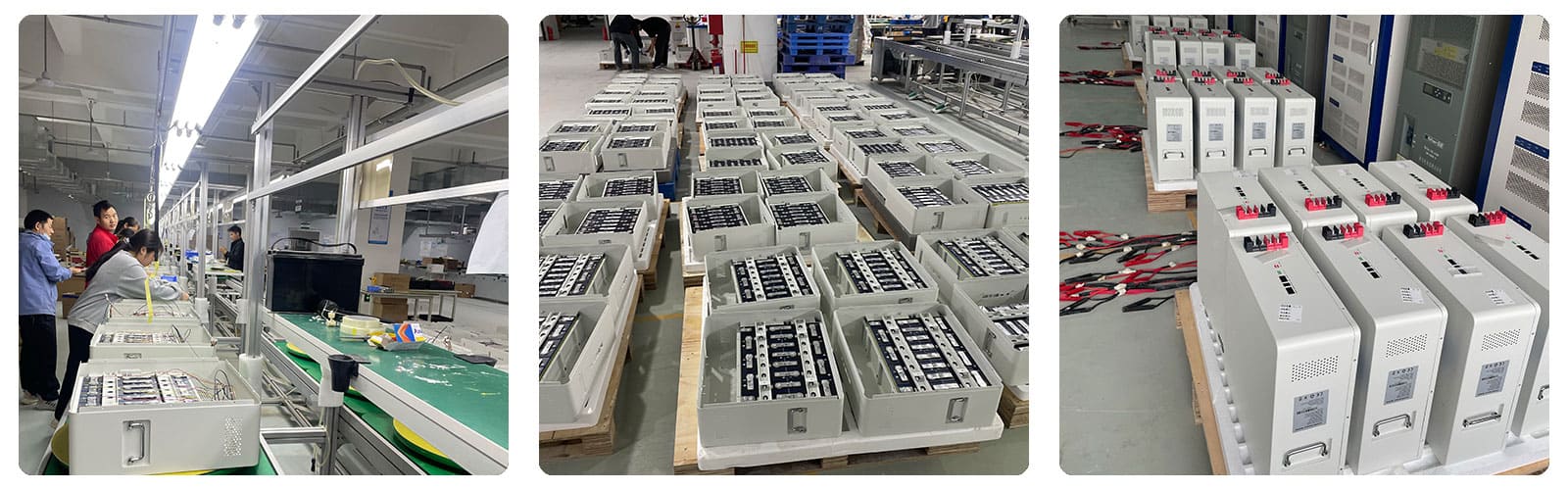

Solar Stacked Energy Battery Storage System Factory

Anern's solar portable storage system factory is where cutting-edge technology meets exquisite craftsmanship. With world-leading production lines and an innovative team, we are dedicated to creating efficient, portable solar energy storage solutions. Every product undergoes rigorous quality control and lean manufacturing processes here to ensure the highest standards.
